Description

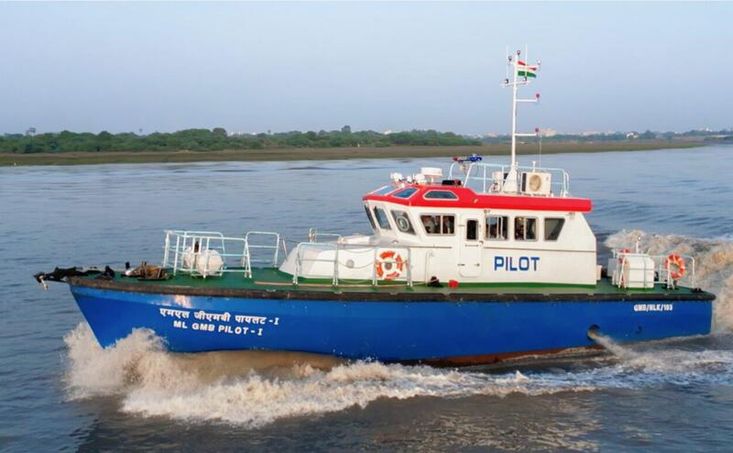

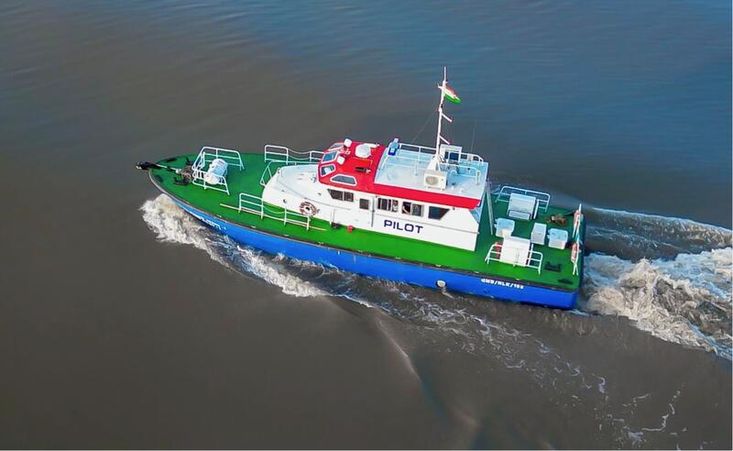

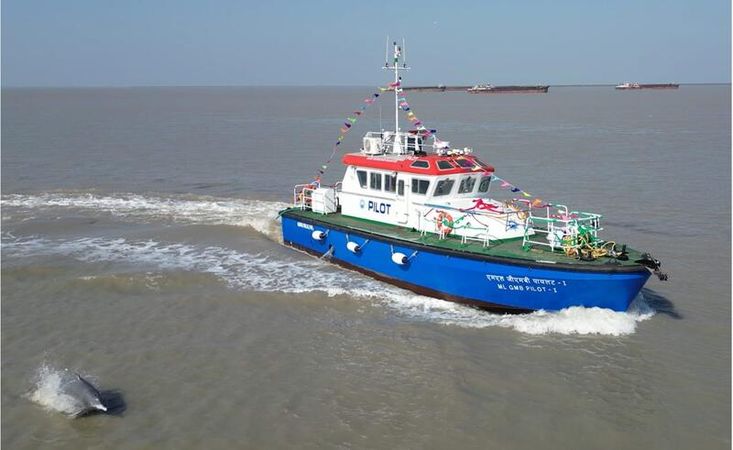

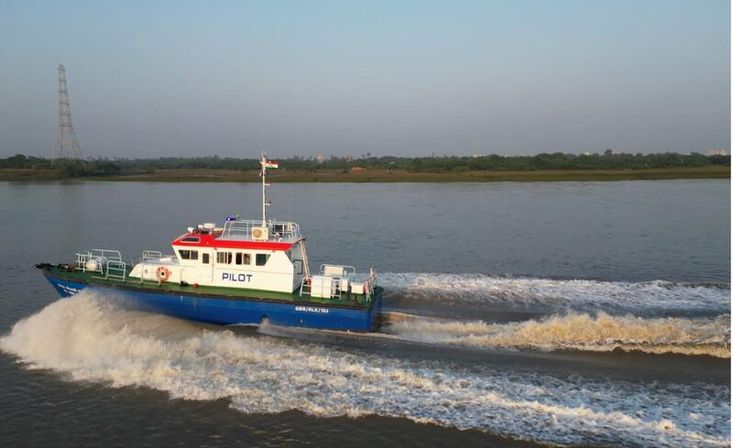

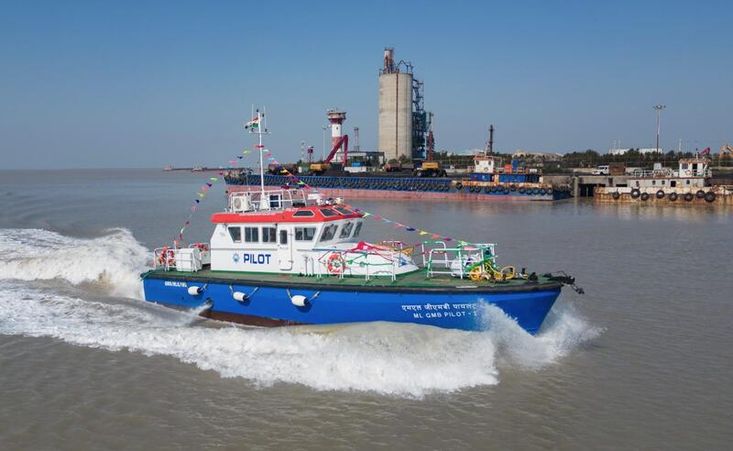

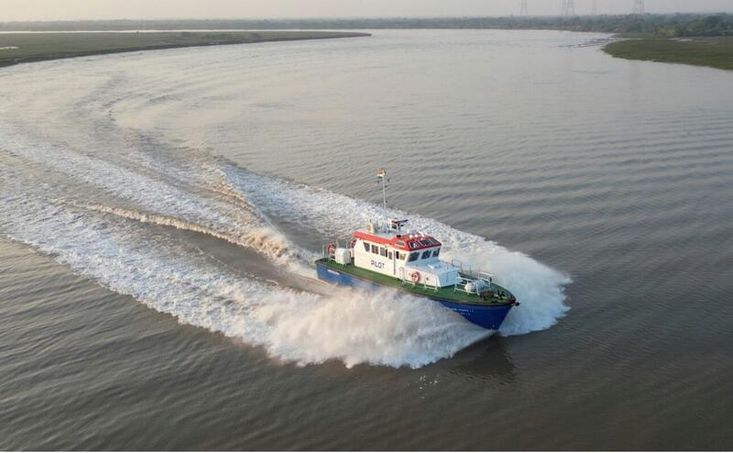

Hull & Superstructure: Steel. Intended Services: Security, Patrolling,Interceptor , Police Duties. Classification: Indian Register of Shipping or IACS. Propulsion Type: Twin inboard engine. Speed: 20+ knots. Crew Accommodation: 8 Passenger + 4 Crew. Salient Features: Spacious Deck, CCTV, Lower Vibration , Panoramic Windows , Robust Construction.
Date Launched: Built to Order Length: 18.00m (59ft 0.6in) Beam: 5.00m (16ft 4.8in) Draft: 1.40m (4ft 7.1in) Note: Engine: Twin Baudouin – Weichai Location: India

Specifications

Accommodation

Crew Accommodation: 8 Passenger + 4 Crew
Passenger / Personnel / Crew: 12 Persons
Bunk & Accommodation: 4 – 8 Crew Berth (as required)
· 2Nos Foldable Bunk.
· 2Nos. Cupboard.
· LED Ceiling Lights.
· 4Nos. Fans.
· Side and Wall Panels.
· Floor Matting.
· 4Nos. Fixed type side Scuttle.
· 1No. Pantry Table.
· Emergency Escape Ladder.
· Ventilation Fan.
· 1No. Domestic Air Conditioner.

· Toilet arrangement.
· Wash Basin with Tap.
· Mirror.
· FRP Lined Flooring.
· Ceramic Toilet with Flush Tank.
· Exhaust Fan.
· LED Light.

· S.S Pantry top with single bowl sink and tap.
· Induction cooking top.
· Storage shelves and lockers on top.
· Exhaust Fan.
· Floor Matting.
· Microwave Oven.
· Sofa type seating arrangement.
· Dining Table.
· Storage Space.

Construction

Length Overall: 18.00m
Hull & Superstructure: Steel
Salient Features: Spacious Deck, CCTV, Lower Vibration , Panoramic Windows , Robust Construction
Length Hull: 18.00m
Beam Hull: 05.00m
Draft Hull: 1.40m
Total Fuel: 2000 liters
Fresh Water Tank: 400 liters
Grey / Black Water Tank : 200 liters
Oily Water: 200 liters

· 1No. FRP FW tanks of 400Liters capacity.
· Visual gauges at the tank.
· 1No. Ele. Pressure water pump.
· UPVC Piping System.
· 1No. FRP sewage tank of 200Liters.
· Visual guages at the tank.
· Tank Fitting one set.
· Domestic type sewage pump.
· GI Piping System.
· 1No. FRP oily tank in engine room.
· Visual gauges at the tank.
· Tank Fitting one set.
· Domestic type oily water pump.
· GI Pipping System.

Navigation Equipment

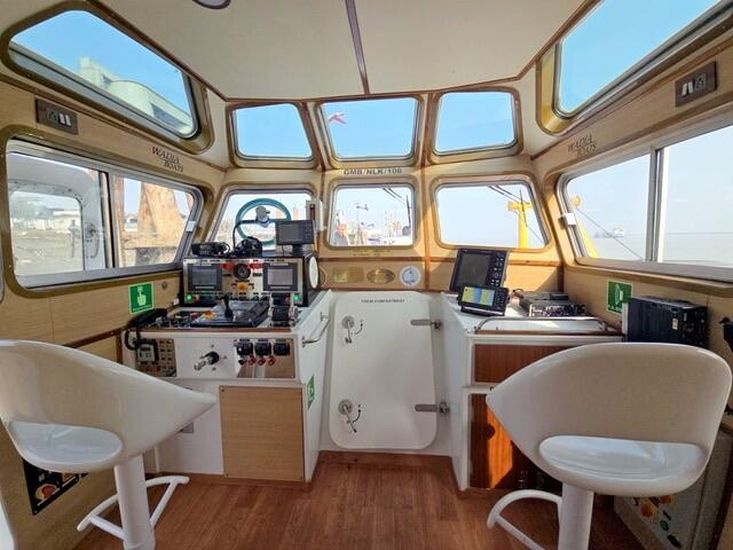

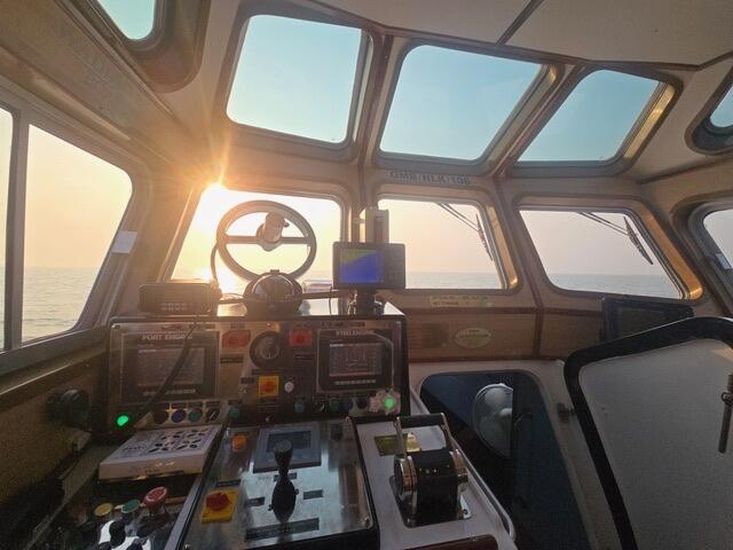

· Helm position with a set of gauges & engine controls.
· 2nos Helm seat.
· 3nos. Marine wiper with the flusher.
· Access from Port, Stbd. & Aft door.
· Access hatch for crew accommodation.
· Navigation & Communication Table.
· 1 Set of windows.
· 1 Set of LED Lighting.
· PVC Floor Matting.
· 2Nos. Fans

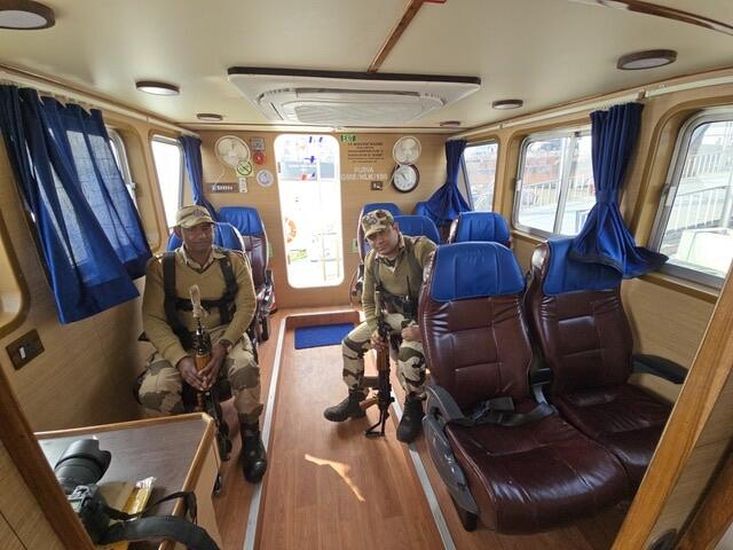

· 8Nos. Upholstered Reclining seats.
· Domestic Air conditioner.
· Emergency access hatch for the engine room.

· Magnetic Compass
· Loud Hailer.
· Amber Flashing Light.
· GPS with Chart Display and Depth Sounder.
· Radar X band 24 NM.
· Binocular Day Vision.
· AIS Type-B
· 1No. VHF includes all Marine Channels.
· 2Nos. Walkie Talki
· 1No. Marine VHF with DSC

Engine(s)

Propulsion Type: Twin inboard engine
Speed: 20+ knots
Twin Baudouin – Weichai Propulsion Engine rated 750hp each.With Eloctronic control module installed additionally for engine control. (IACS Unit Certified)
· The engine will be equipped with seawater cooling, heat exchanger , seawater pump, Oil cooler, and oil drain pump.
· All machinery will be installed to the manufacturer’s requirements.
· The flexibility of all connecting pipes, cables, hoses, and shafts will be matching to the flexibility of the supports of the equipment.

Gearbox: Hydraulic Marine Gearbox make ZF or equivalent make having suitable gear ratio. (IAVCS Unit Certified)
Stern Gear: IRS unit certified. M.S. Stern tube will be fitted with M.S. housings, water –Lubricated cut-less rubber or composite bush bearing with stainless steel 316L propeller shaft.
Rudder: Twin M.S. upper Rudder stock with lower M.S. rudder blade with through hull installation incorporating and the spade/balanced type.
Propeller: M.N. Bronze fixed pitch 4/5 blade propellers
Speed: 20 knots @ 100% MCR
Controls: Electronic control (reputed make)
Steering System: Electro Hydraulic IRS Type approved steering system
Exhausts: Water mixed engine and DH Exhaust
Electrical:
· 2No. Suitable engine with suitable alternator having 15-20Kva –50 Hz shall provide.
· Heat Exchanger , fresh water cooling and seawater pump are built on these units.
HVAC: Domestic type Outdoor unit with Cassette AC shall be installed in Wheelhouse and Crew Accommodation.

Certification

Intended Services: Security, Patrolling,Interceptor , Police Duties
Classification: Indian Register of Shipping or IACS
Flag State: TBD
Classification Society: Indian Register of Shipping
Area of Operation: TBD
Vessel Registration: TBD

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
