Description

Engineered for professional maritime operations, the PHS-R750 series offers a robust, non-adaptive aluminium platform designed for high-speed rescue and utility missions. Main Engine: 1 x Mercury F100EXLPT EFI (100 HP Outboard Engine). Fuel Capacity: 200 L tank with level sensor and indicator. Hull: Aluminium construction with 7 separate non-submersible displacement chambers.
Date Launched: Built to Order Length: 7.49m (24ft 7in) Beam: 2.34m (7ft 8.13in) Draft: 0.7m (2ft 4in) Note: Main Engine: 1 x MERCURY Location: Poland

Specifications

Accommodation

Cabin Configurations:

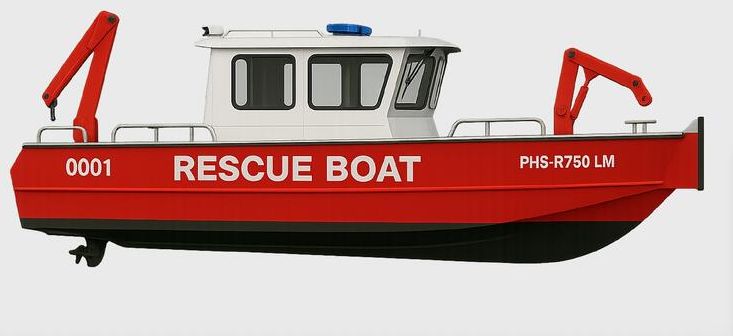

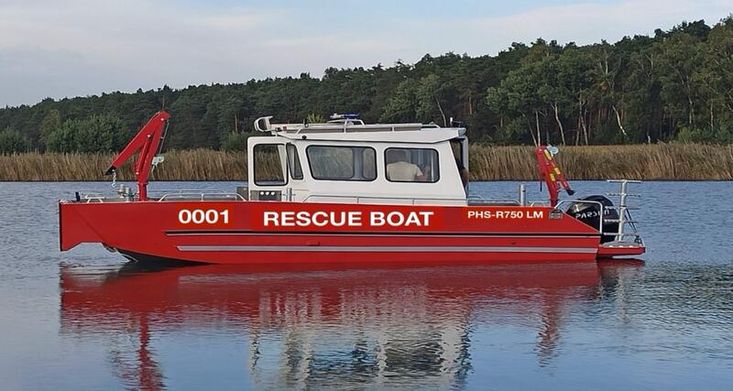

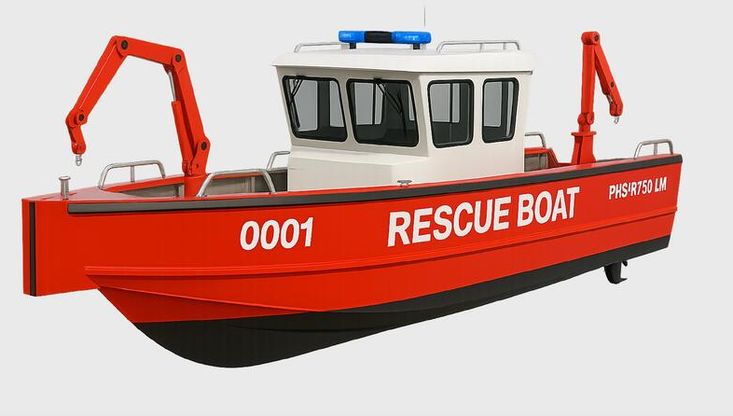

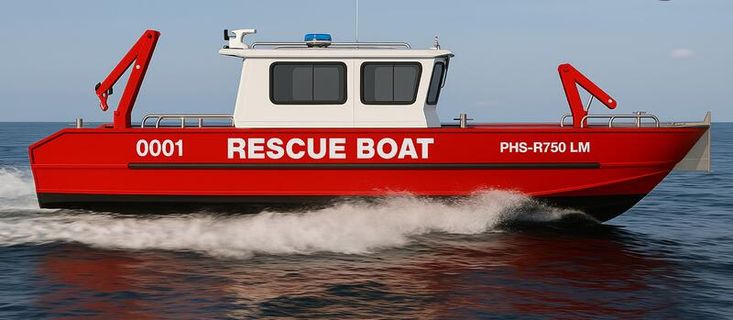

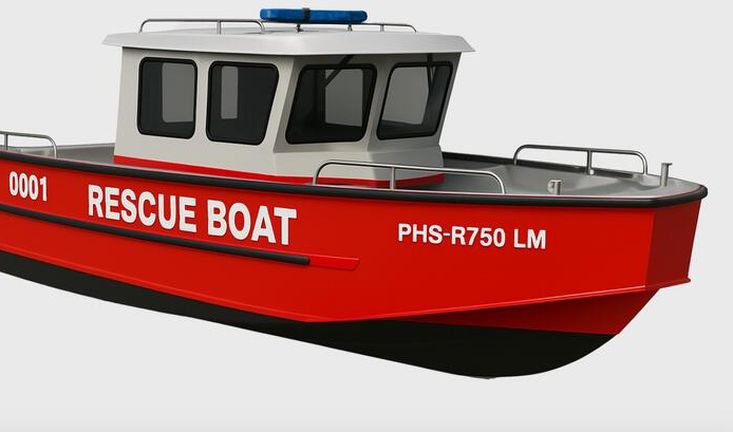

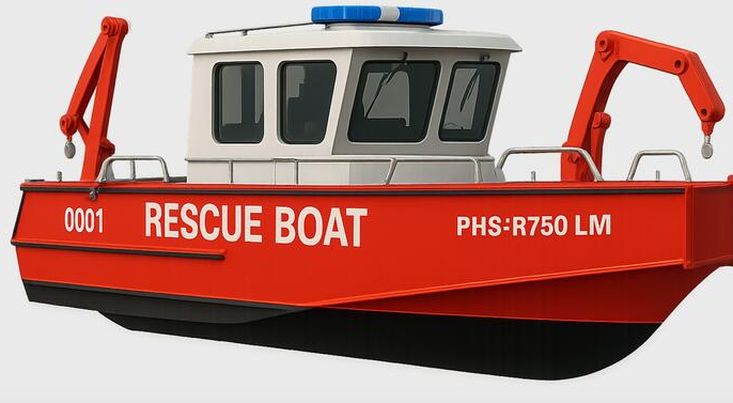

PHS-R750 LM: Cabin located in the middle of the deck
PHS-R750 LB: Cabin located at the back of the deck

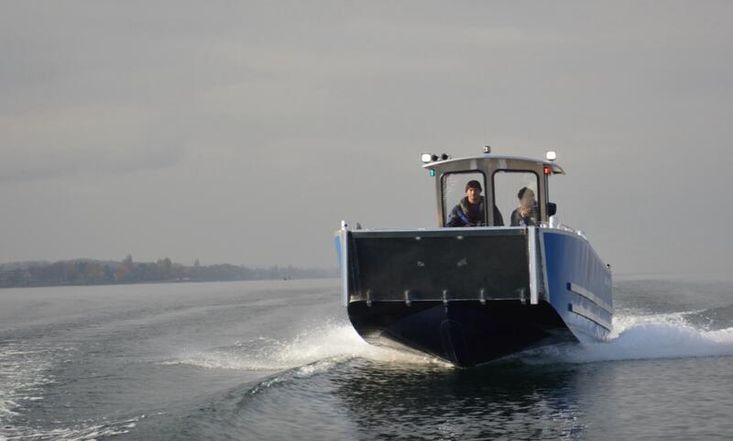

Access: Openable side gates, drop-down side hatches, and an opening bow gate with a manual winch

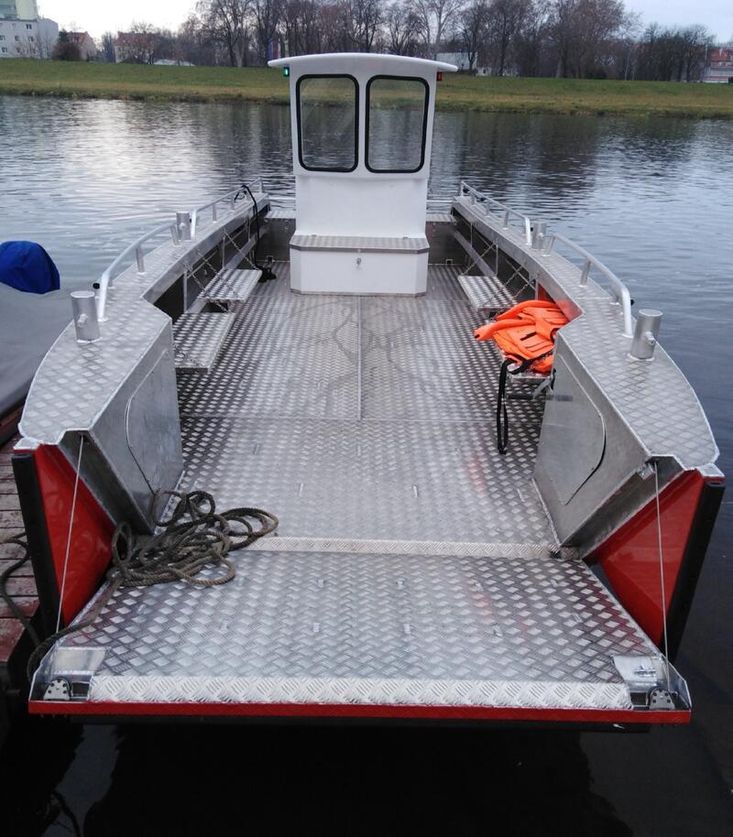

Deck: Self-draining floor made of corrugated sheet metal with side and stern railings

Construction

Engineered for professional maritime operations, the PHS-R750 series offers a robust, non-adaptive aluminum platform designed for high-speed rescue and utility missions.

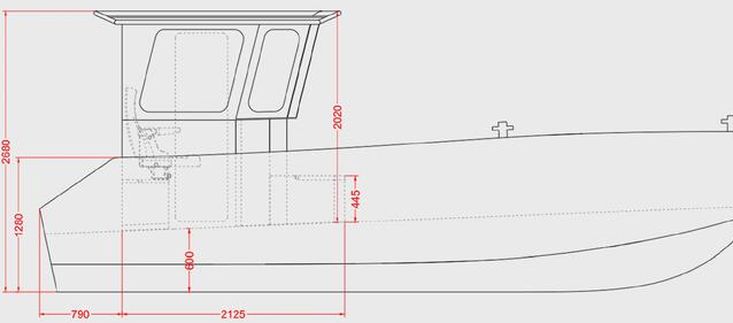

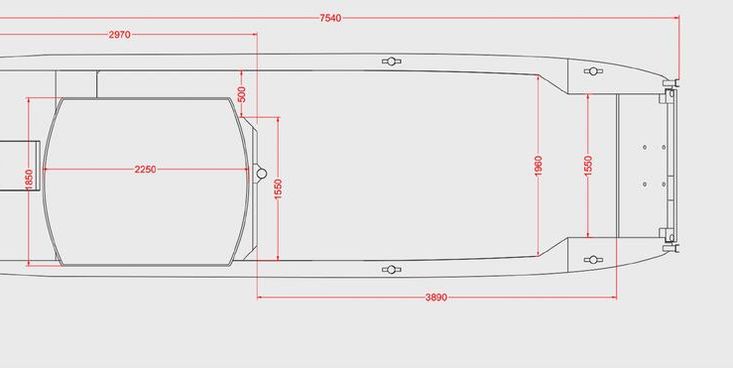

Length: 7.49 m

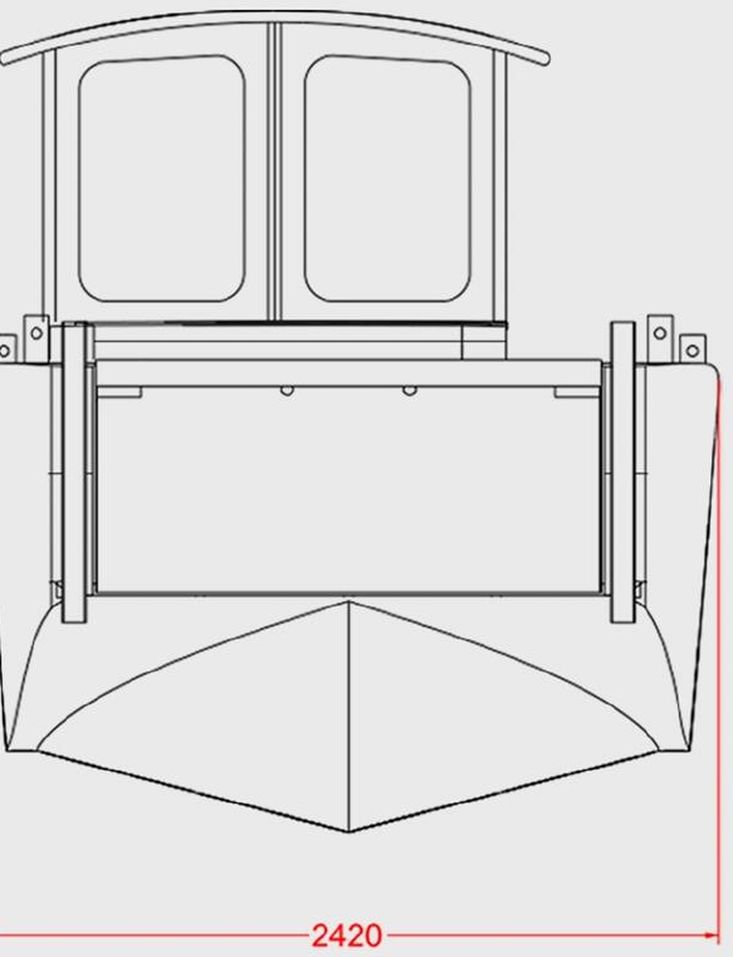

Width: 2.34 m
Depth: 3 m
Draft: 0.7 m
Approximate Weight: 1,750 kg
Capacity: 12 people
Maximum Speed: 50 knots
Hull: Aluminum construction with 7 separate non-submersible displacement chambers.
Category: C

Navigation Equipment

Engine(s)

Main Engine: 1 x Mercury F100EXLPT EFI (100 HP Outboard Engine)
Fuel Capacity: 200 L tank with level sensor and indicator
Electrical System: 24V installation with a 24V-400Ah battery

Safety Equipment

Firefighting: * Electrically operated water and foam cannon (3,000 L/min capacity; 50 L foam tank)
Dedicated fire pump (2,050 L/min at 6 bar) powered by a 41 kW engine
Intelligence System (I.S.M.A. Rescue): * Integrated self-learning management system for optimizing speed, route timing, and energy usage
Active deck stabilization and level maintenance
Remote operation and monitoring via encrypted internet connection with 8 IP cameras
Navigation: Navigation lighting, halogen spotlight, and an aluminum sonar sensor mount on the transom

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
