Description

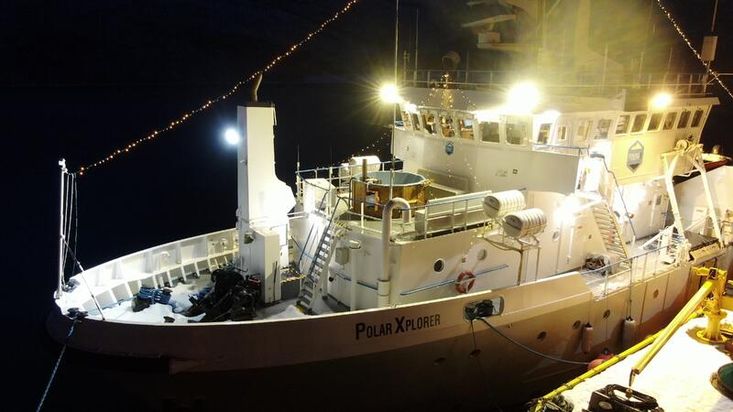

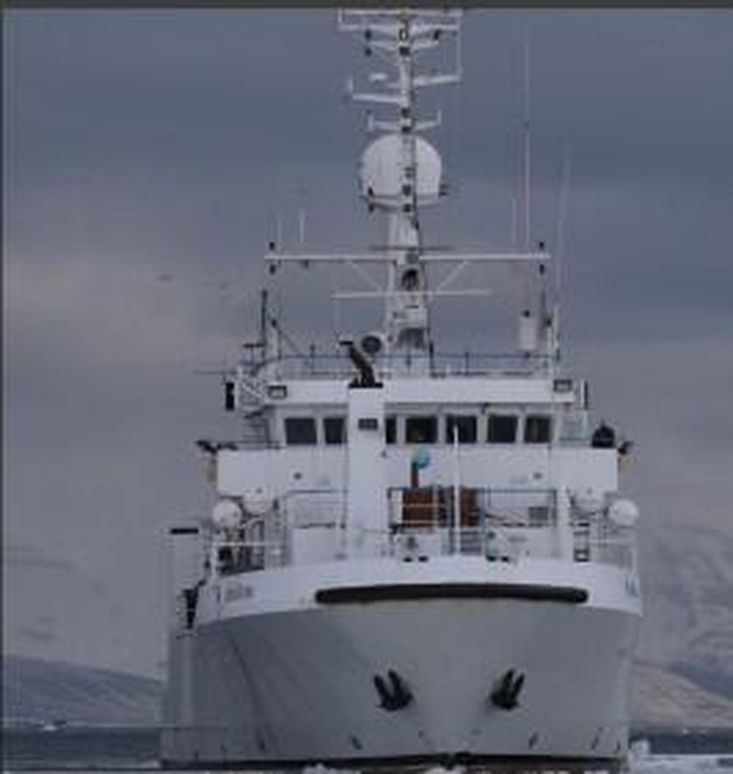

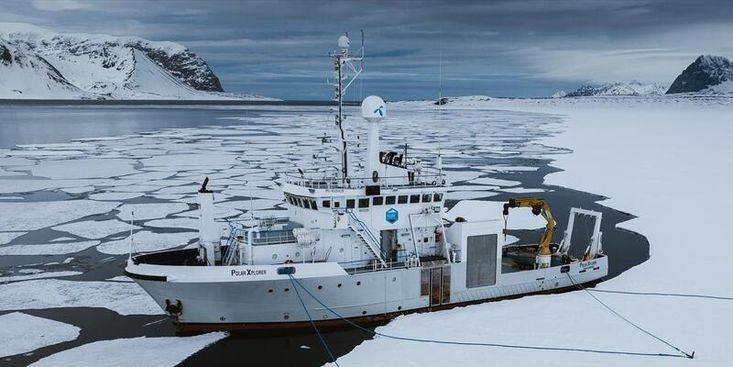

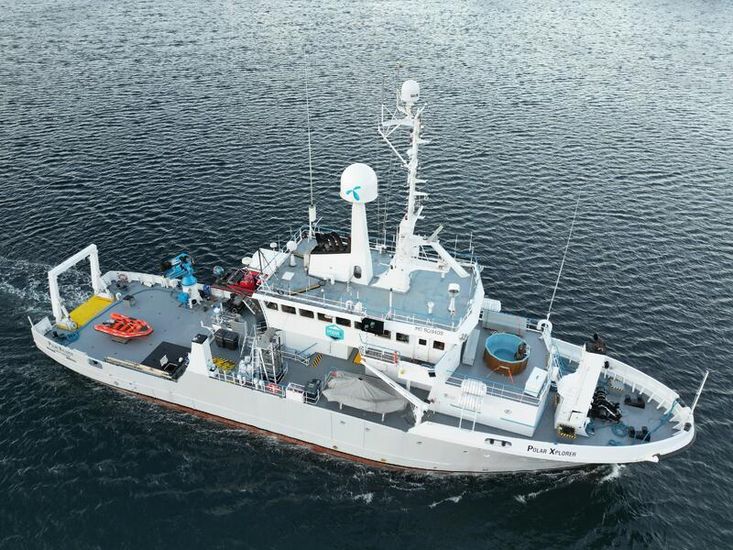

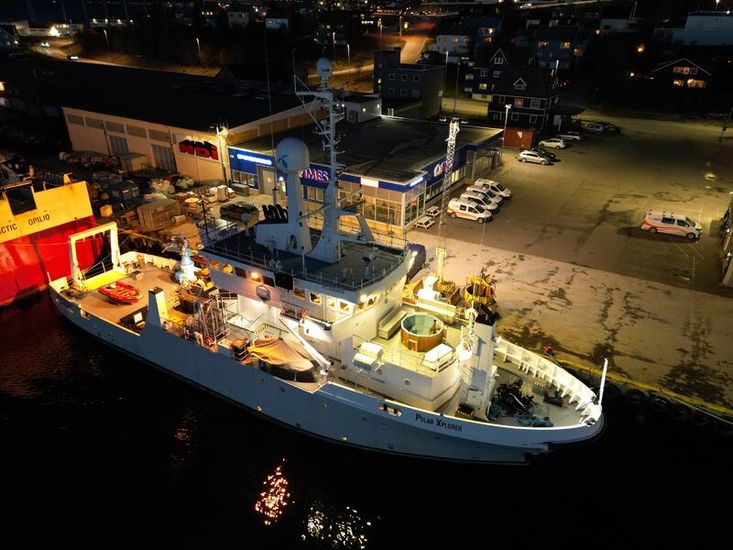

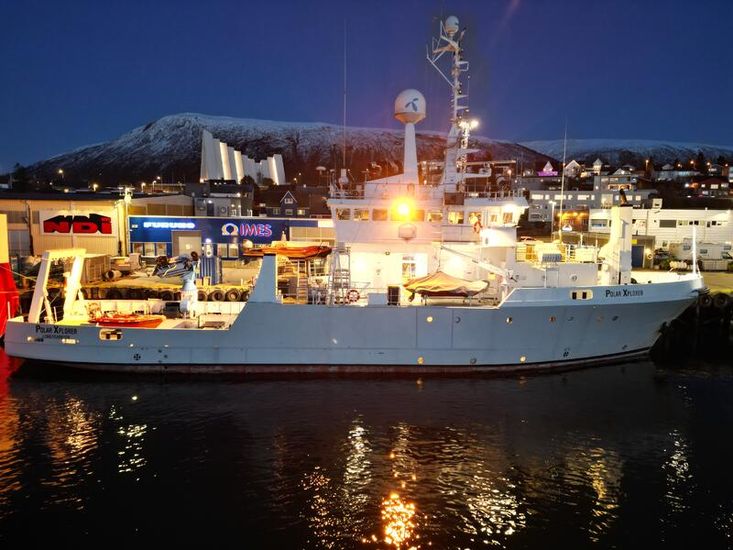

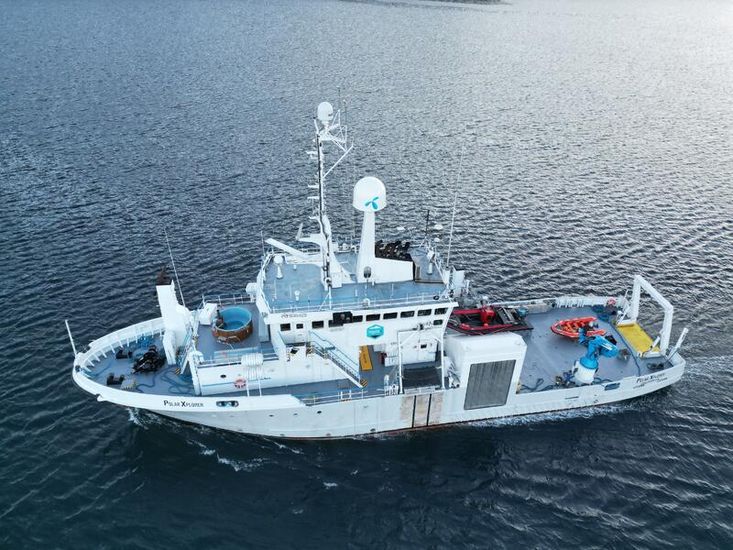

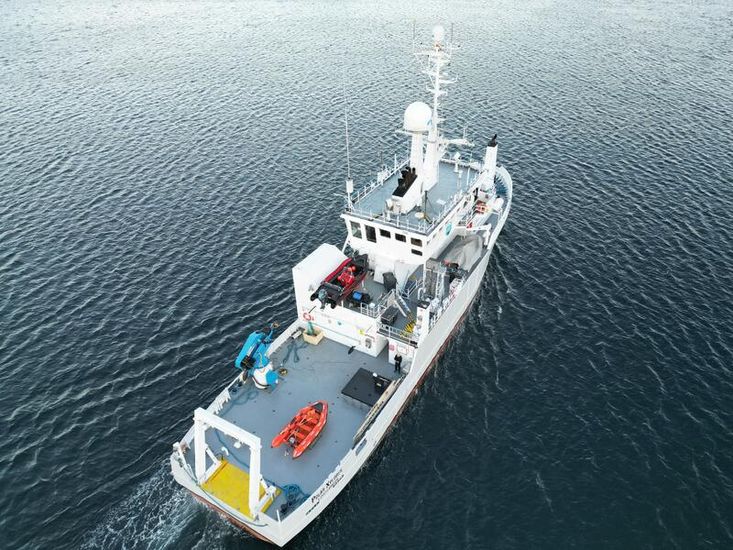

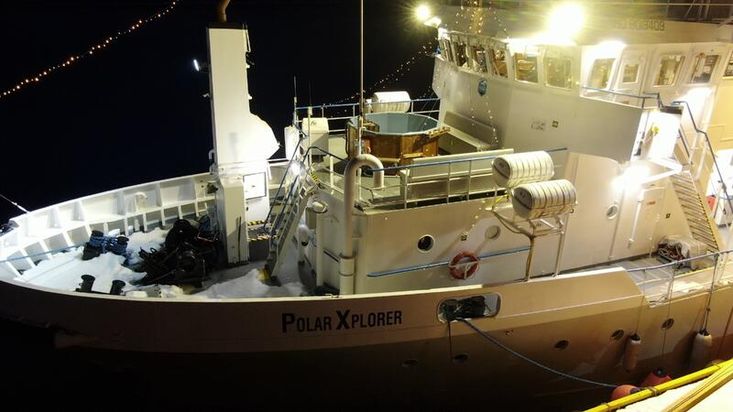

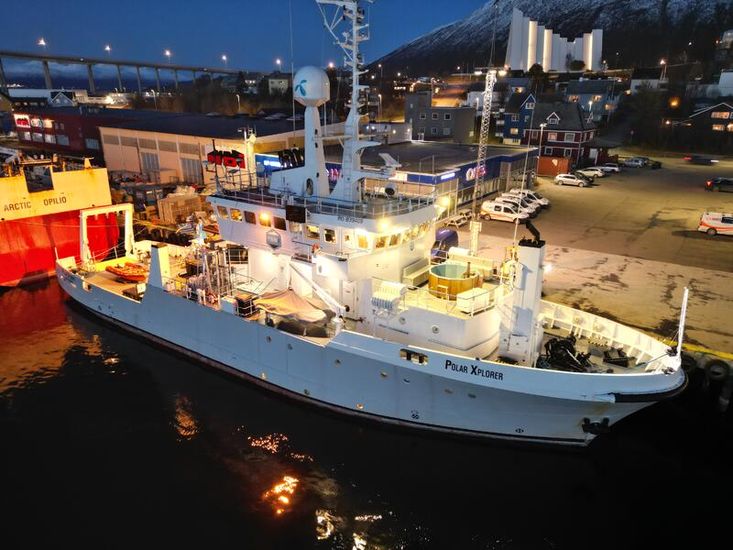

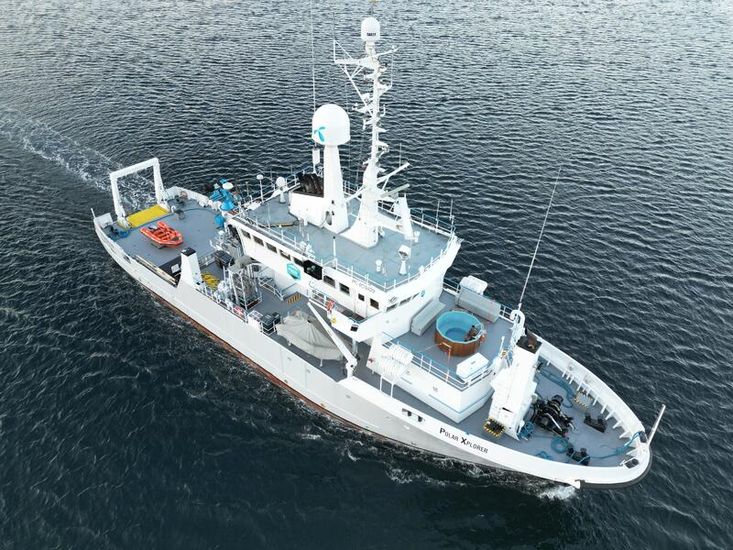

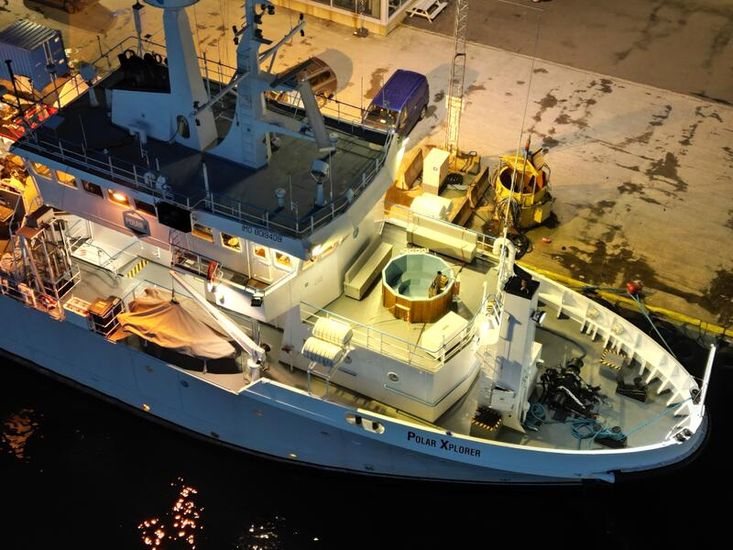

A state-of-the-art vessel, RV PolarXplorer, was completely refit during 2015 - 2021. New interior and all systems refurbished, providing maximum safety and comfort. With a lower aft deck, heavy lifting cranes allow for safe launching of Tenders even in heavy seas. Total rebuild in 2015 for DKK 85 million, approx. Euro 11.5 million. We sold this vessel in 2014 on behalf of the Royal Norwegian Navy to Denmark. The vessel is in an unbelievable condition and looks like new.
The vessel was the major diving and ROV vessel for the Norwegian defence.

KNM "Tyr" (N50) had the status of one of the Navy's most unique tools. As a special vessel for deep underwater operations, remotely operated underwater vehicles (ROV) and submarine rescue, the ship was repeatedly called in when something difficult or historically important was to be found on the seabed. Until she was phased out, "Tyr" managed to be behind some of the most sensational wreck finds in modern Norwegian naval history.

Specifications

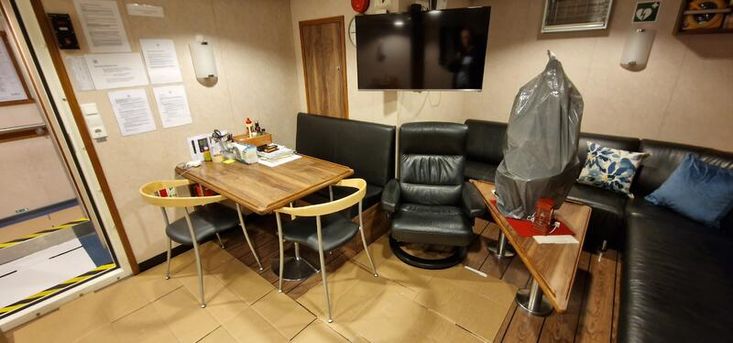

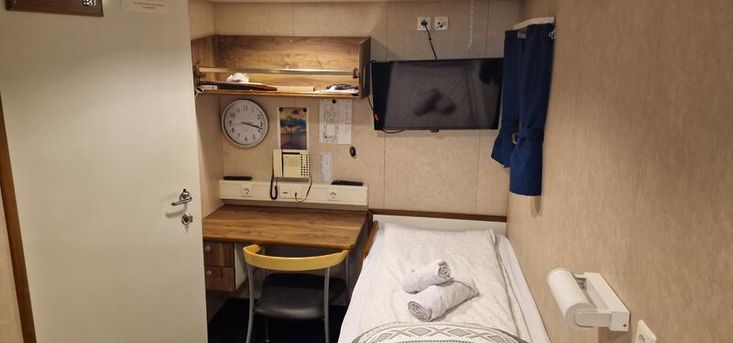

Accommodation

Beds for 27 pax included the crew.

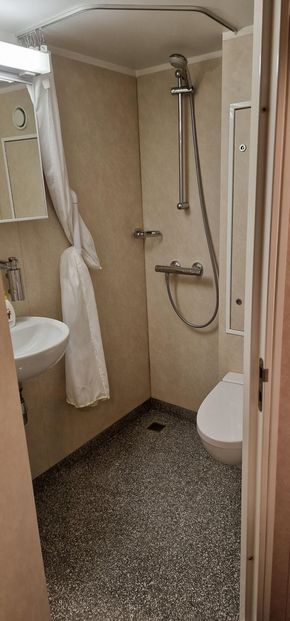

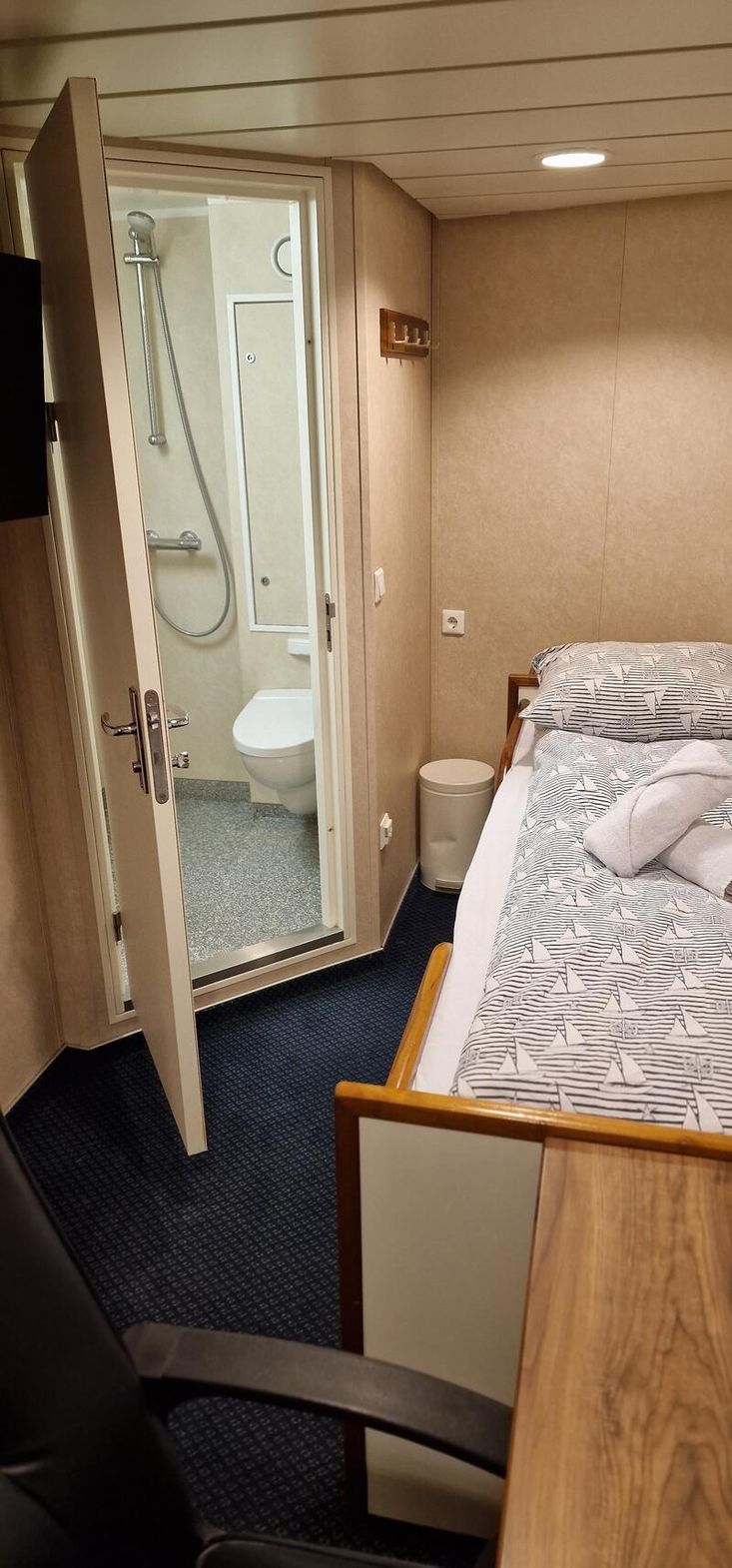

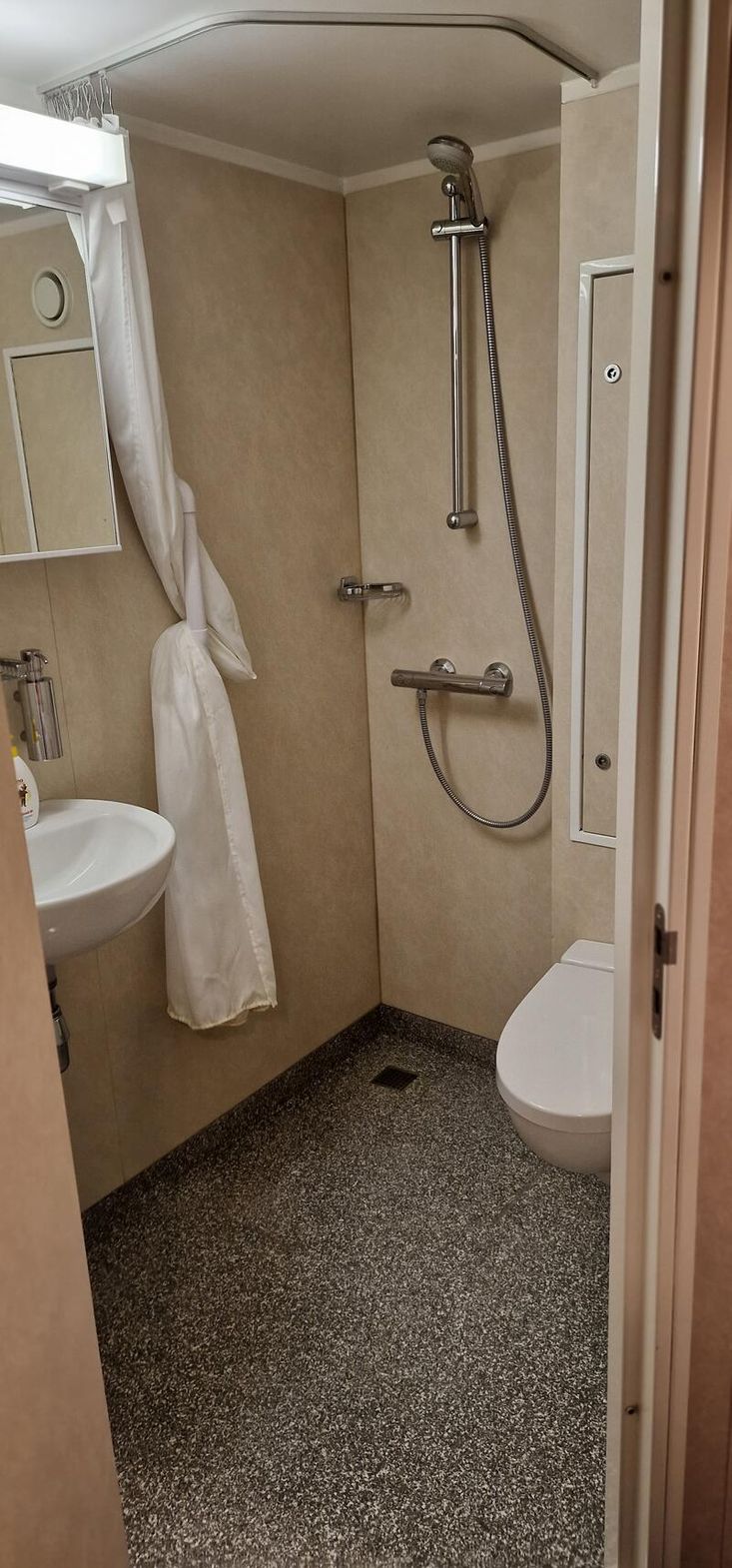

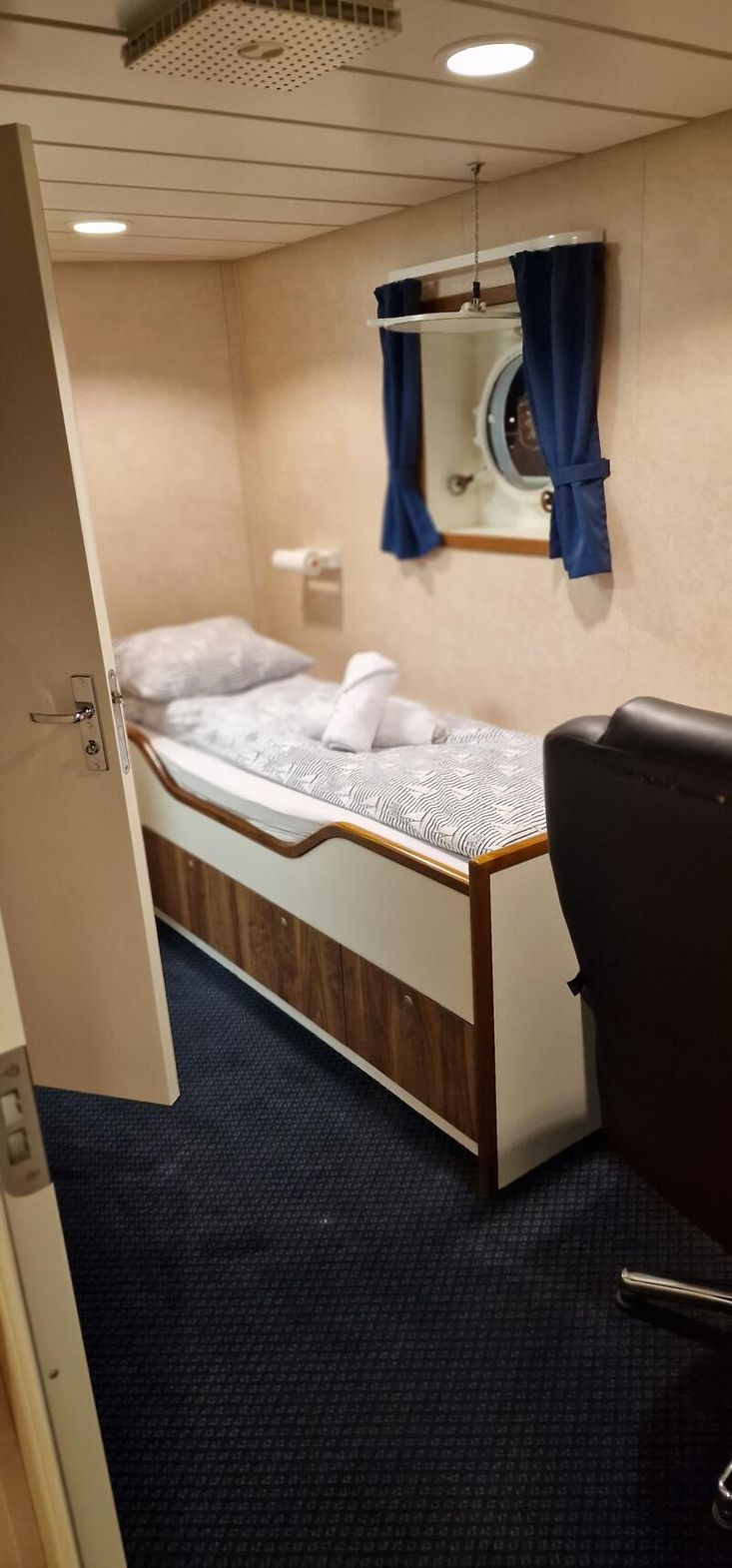

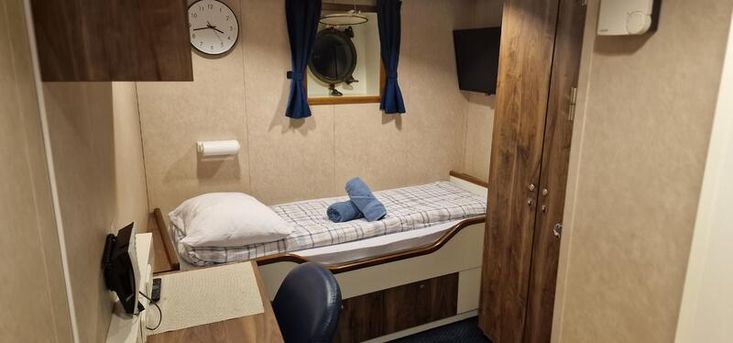

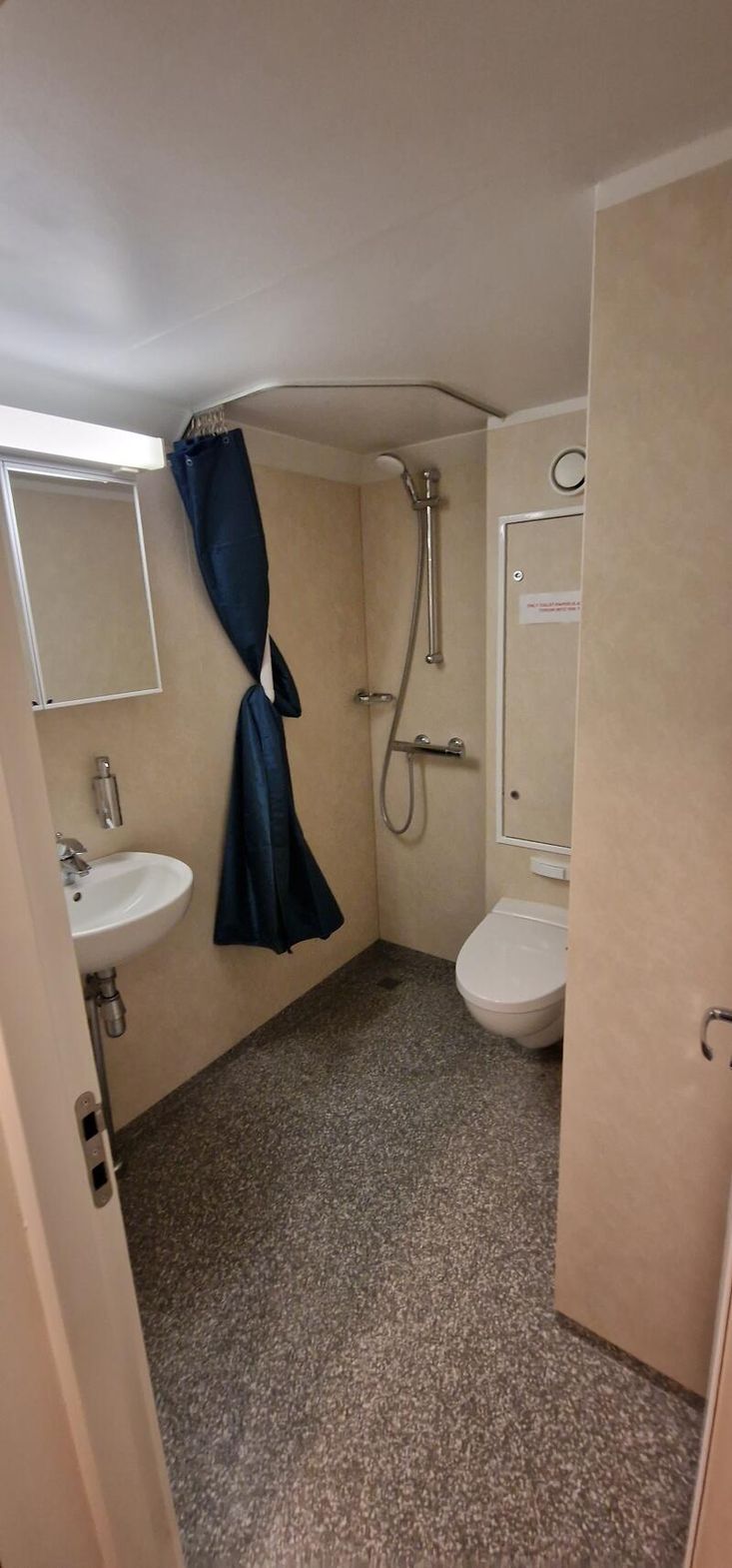

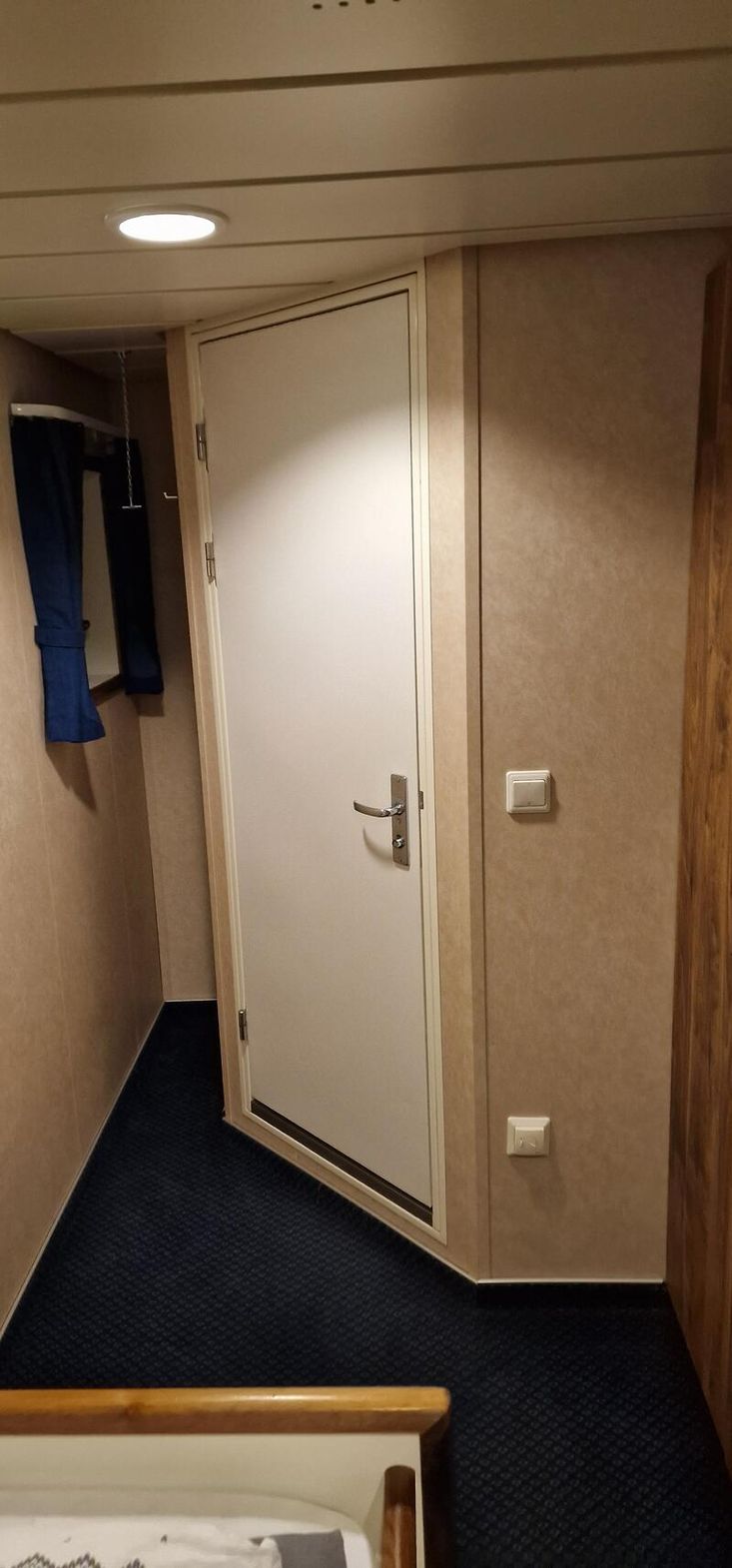

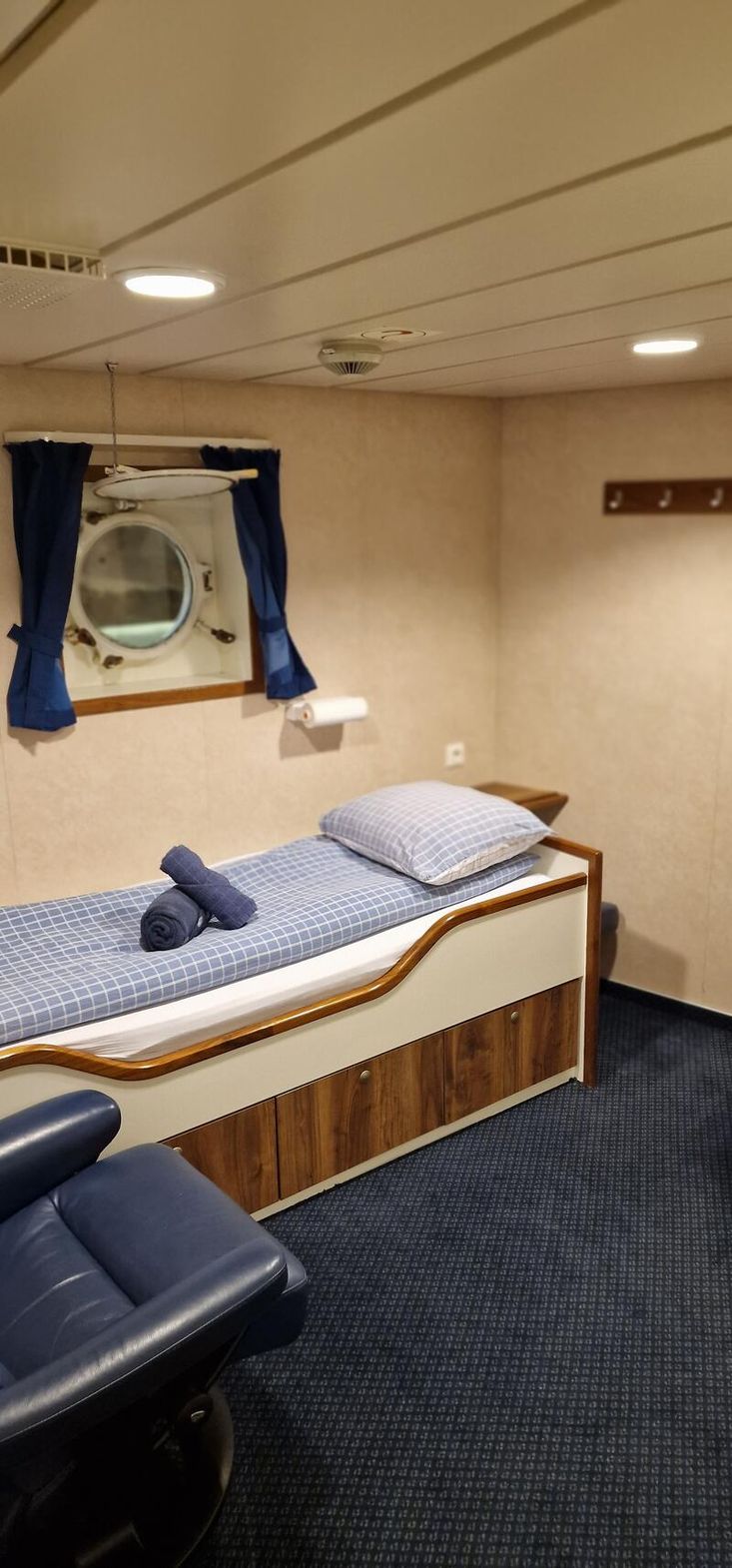

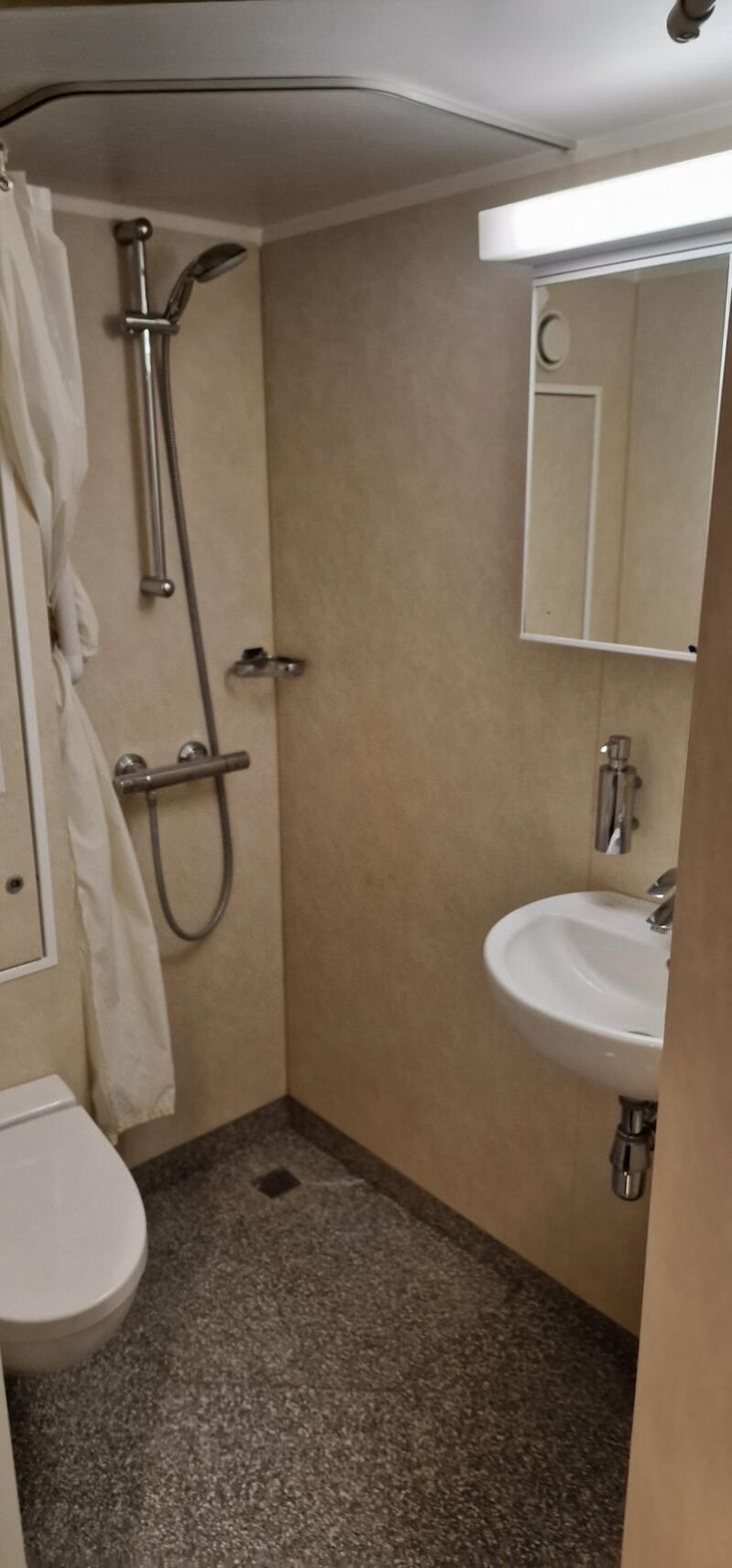

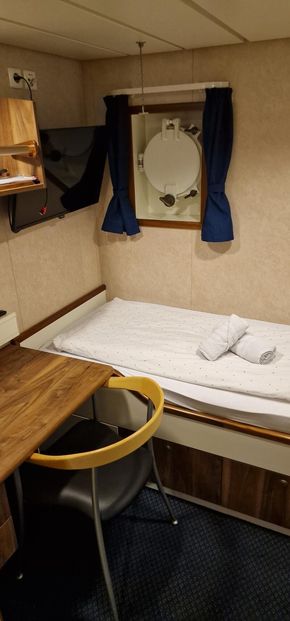

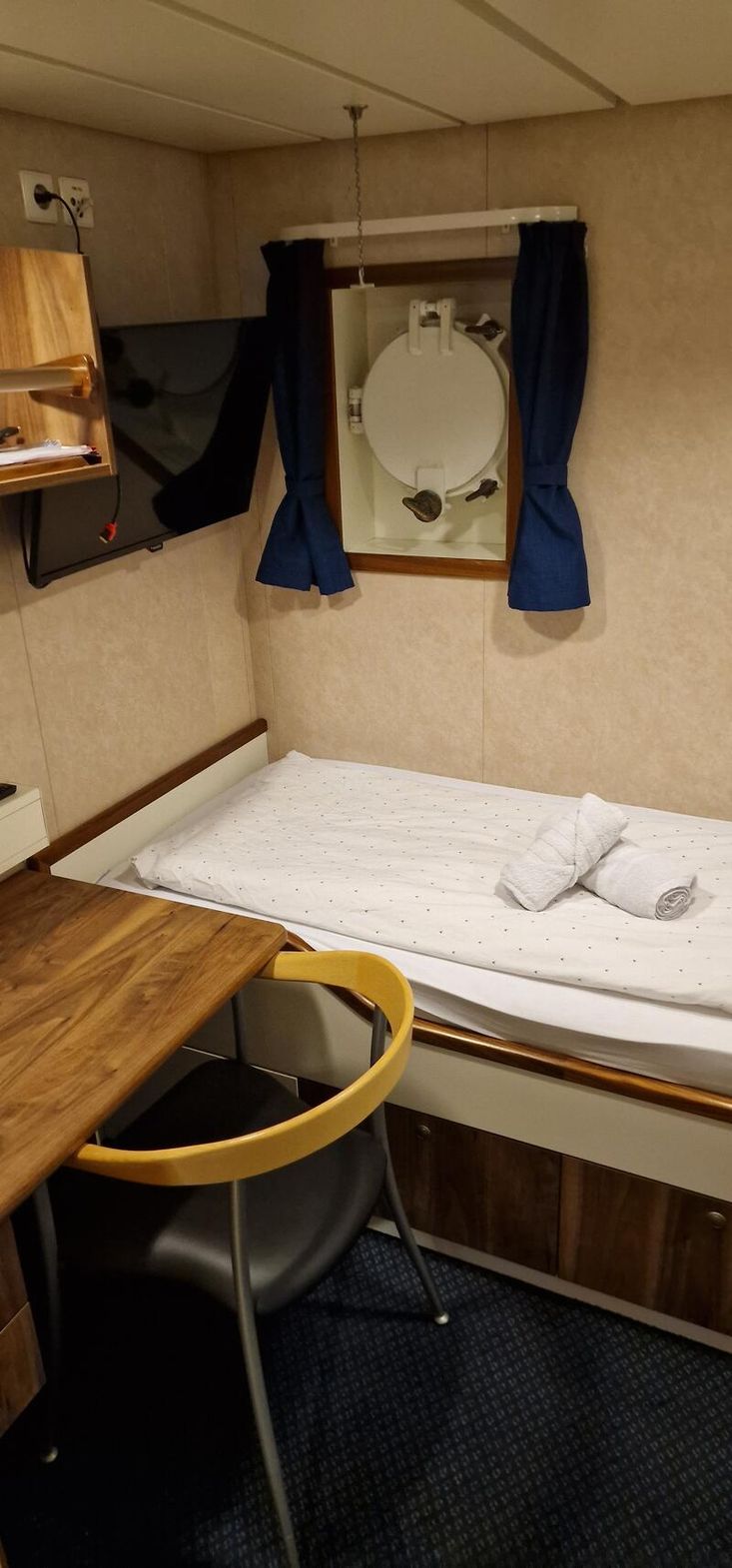

9 x 1 berth cabins, shower /toilet/sink

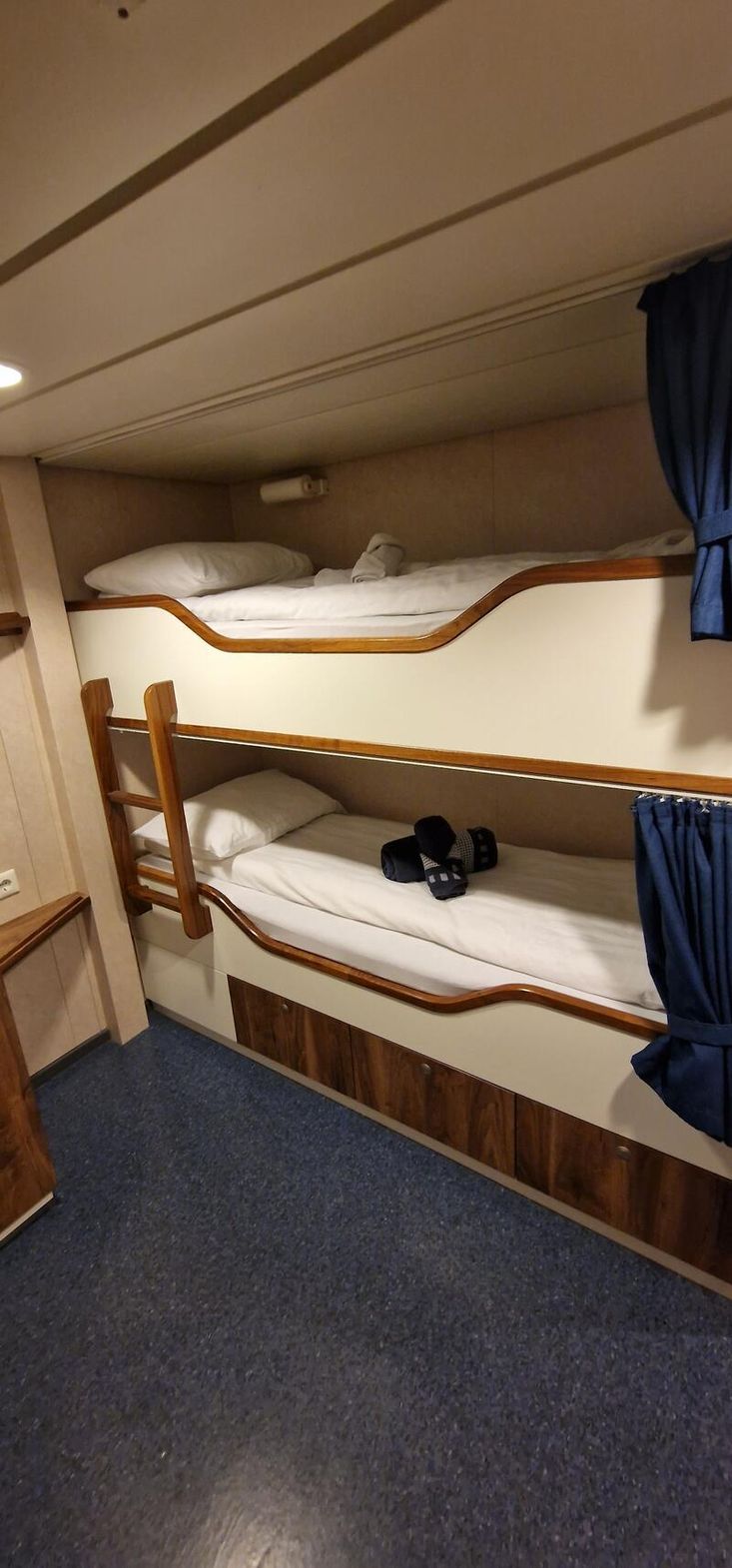

6 x 2 berth cabins, shower /toilet/sink
3 x extra cabins

Fully Air Conditioning
Extra toilets on all floors.
Garderobe, toilet, sink/change room at the entrance from the Main deck.

Construction

Equipment

Workshops
Cargoroom
Workshop for hangar

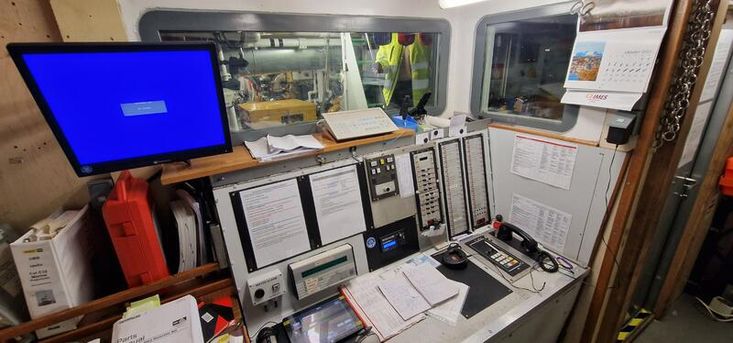

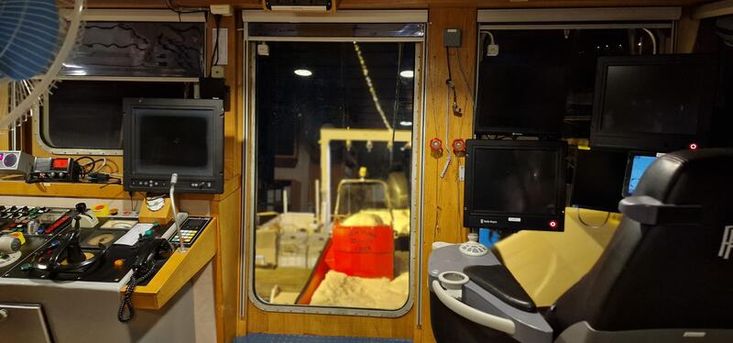

Operation room for ROV

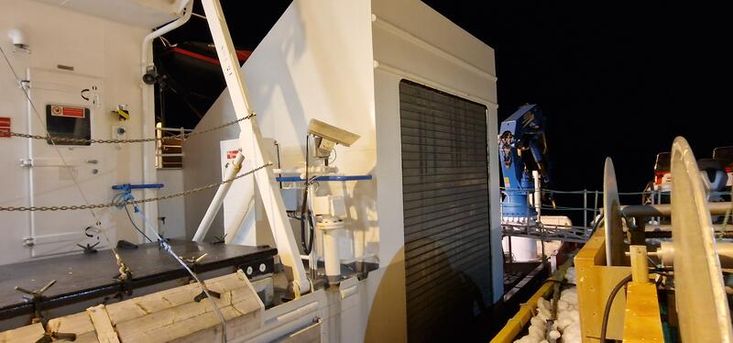

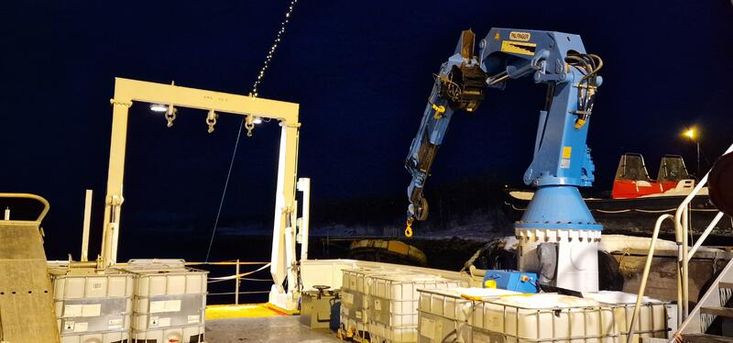

A-frame crane for ROV BB side
Hipad Moonpool

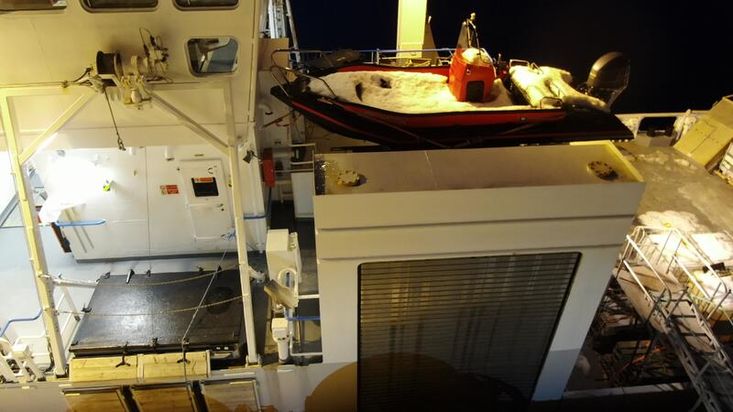

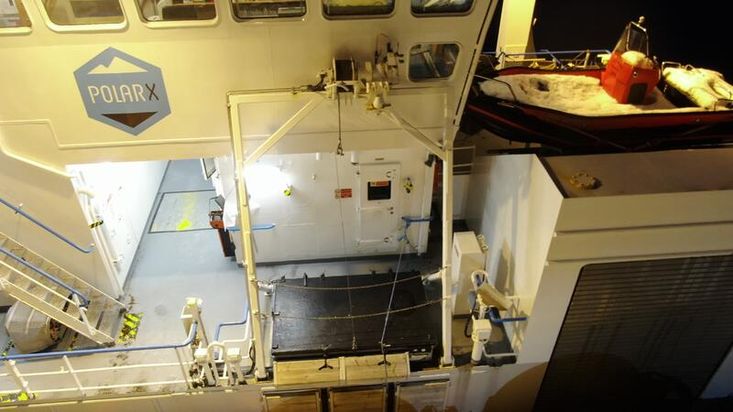

ROV garage with side door
Cargo room ROV operator room ROV lift Winch

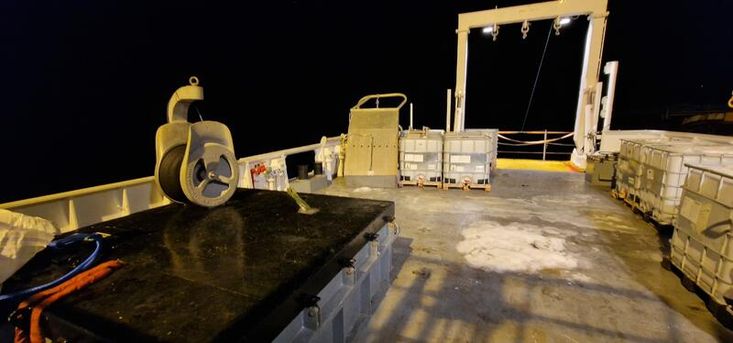

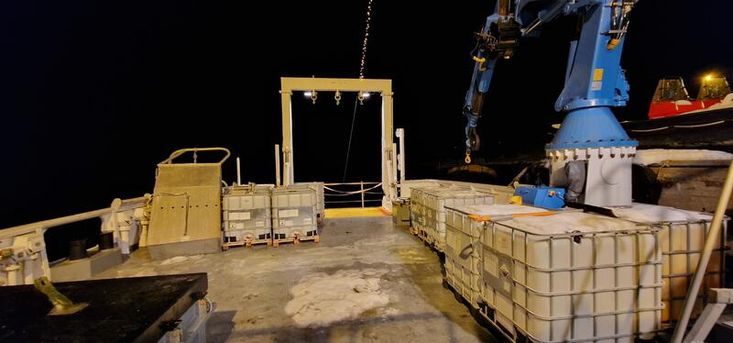

A-frame SWL 10t
Width 3,5m
Height 4,12m
A-frame winch SWL 5t

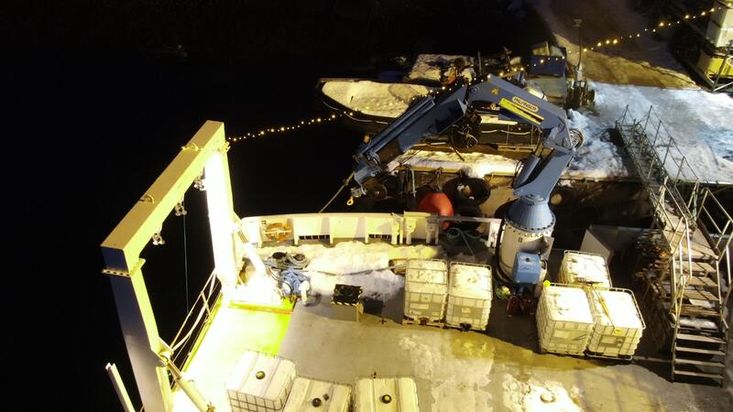

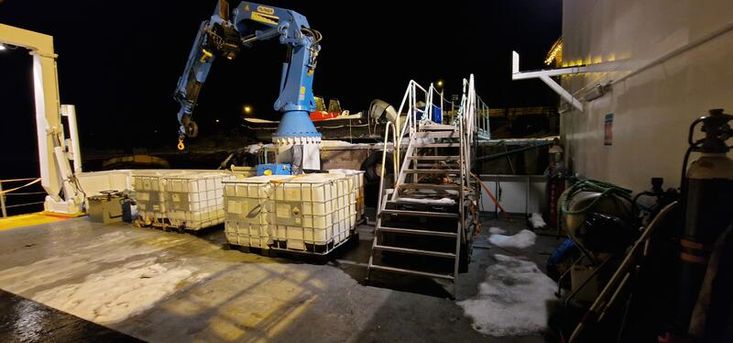

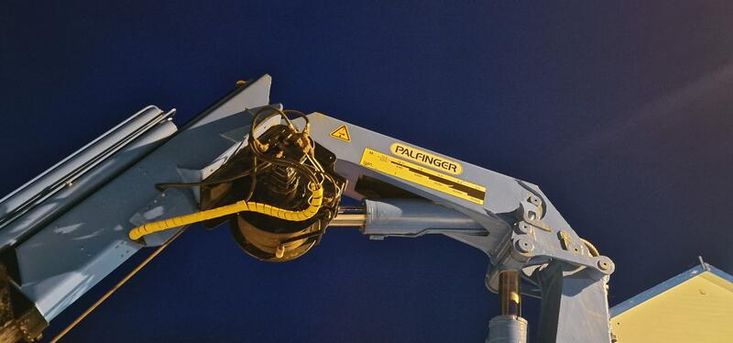

Deck crane Palfinger PK45000M
Max outreach 15t at 4m
Min outreach 3,45t at 13m
Max hoist height 14,5m
Towing hook SWL 15t
Load 30t

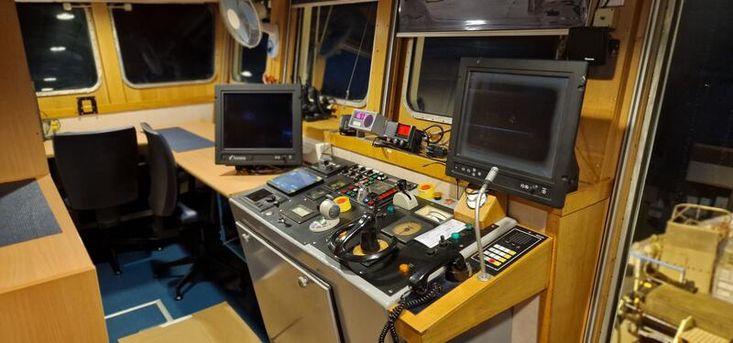

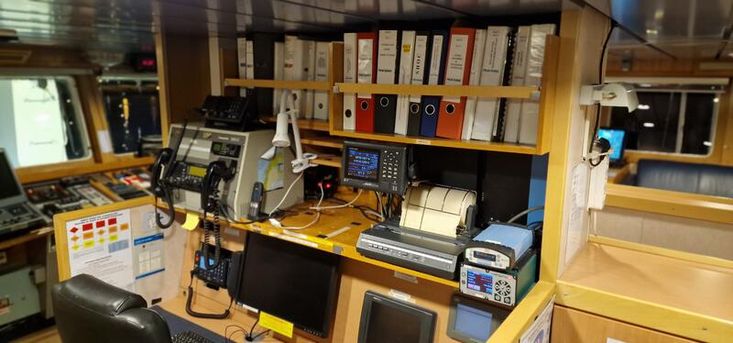

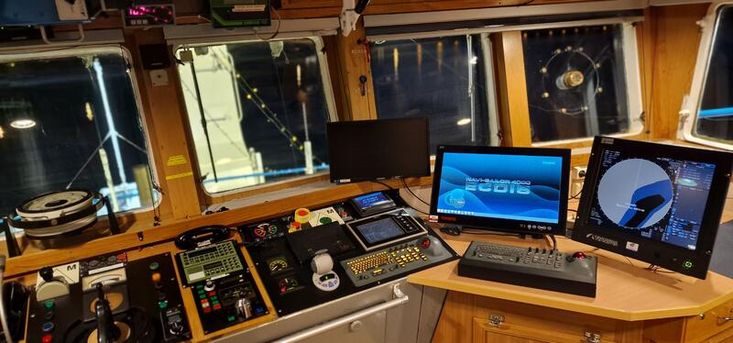

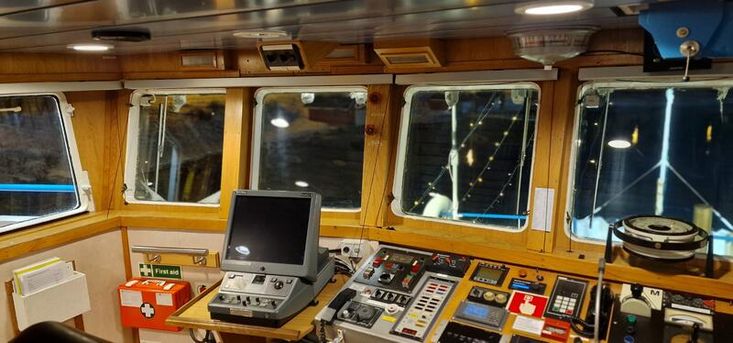

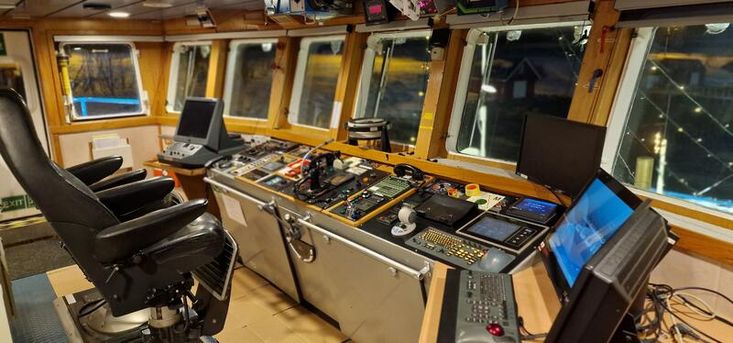

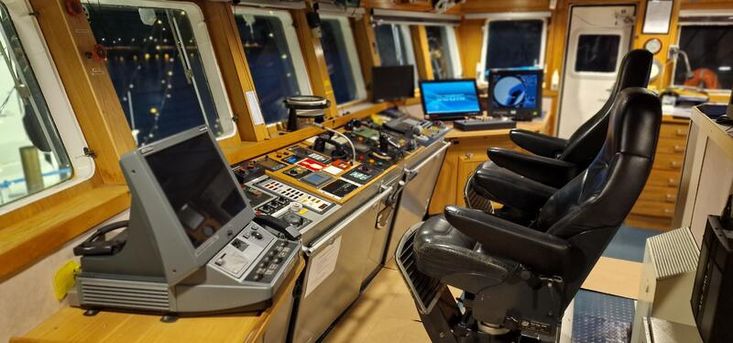

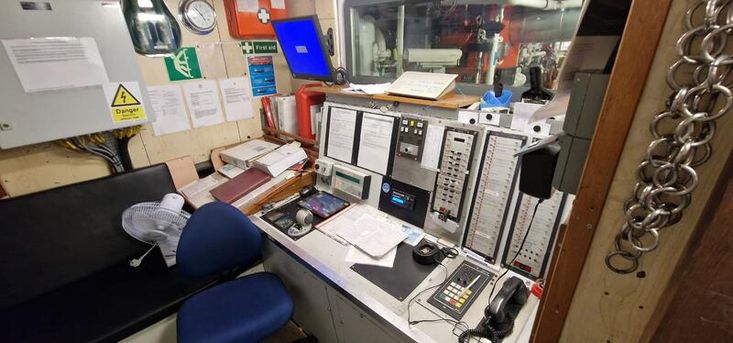

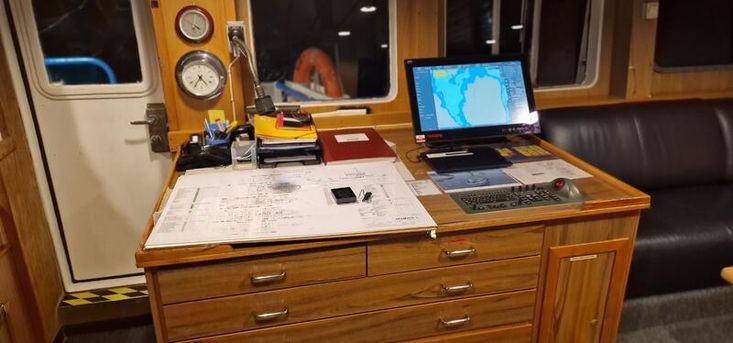

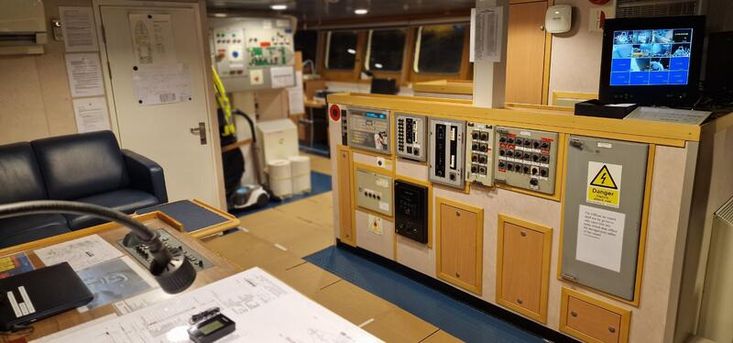

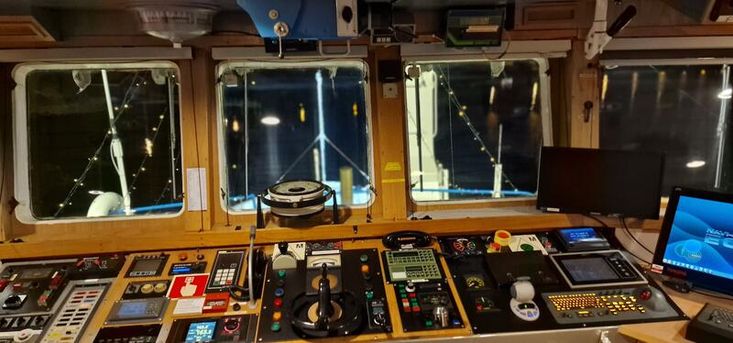

Navigation Equipment

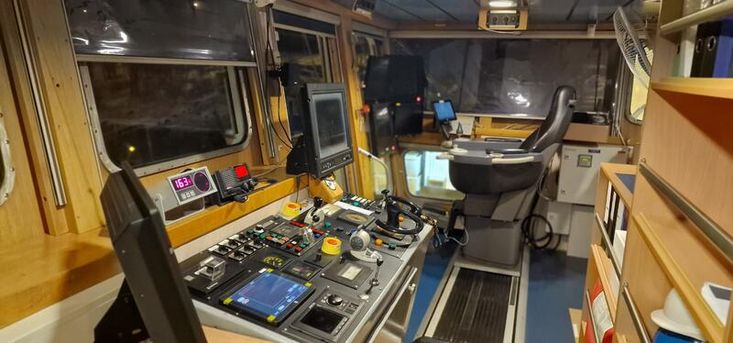

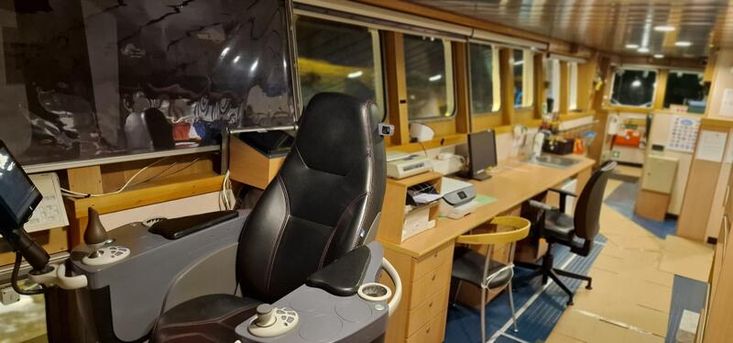

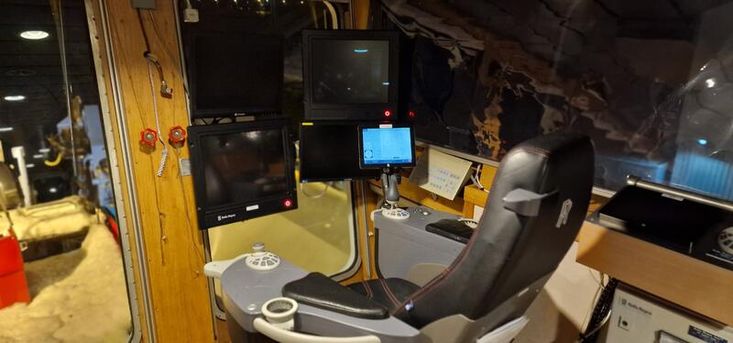

DYNAMIC POSITIONING Rolls-Royce Icon DP1 Rolls-Royce Bridge Integrated Chair/Joystick

GMDSS Area 2 Compromising 1
Unit DSC
SSB ICT EQUIPMENT
Iridium 2 Units
- LT 3100S GMDSS System (A1, A2, A3)
VHF Sailor 2 Units DSC
VHF portable 3 Units
Navtex receiver 1 Unit
SART 2 Units
EPIRB 2 Units
Radar Transas 3cm. 1 Unit
Radar Sperry 10cm. 1 Unit
Magnetic Compass 1 Unit
Auto Pilot 2 Units
AIS 1 Unit
Speed Log 1 Unit

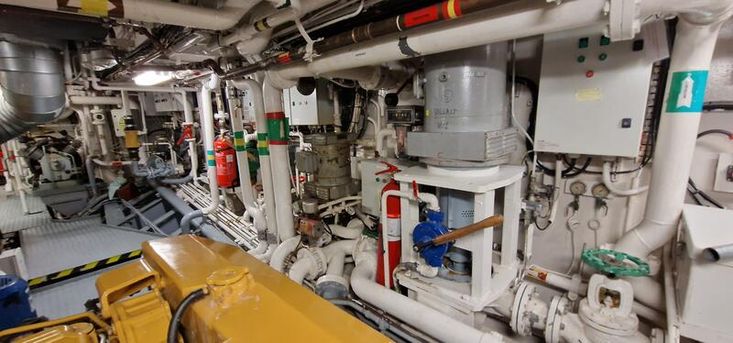

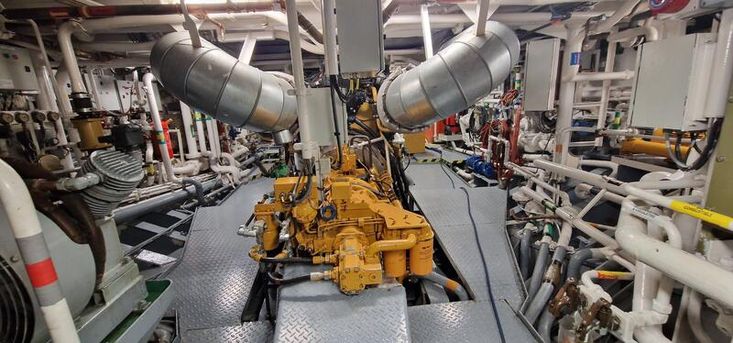

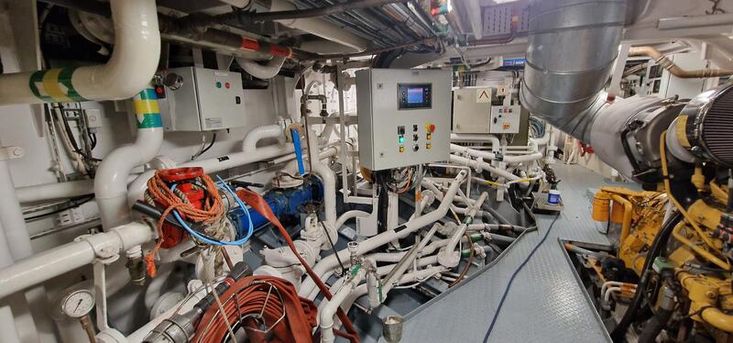

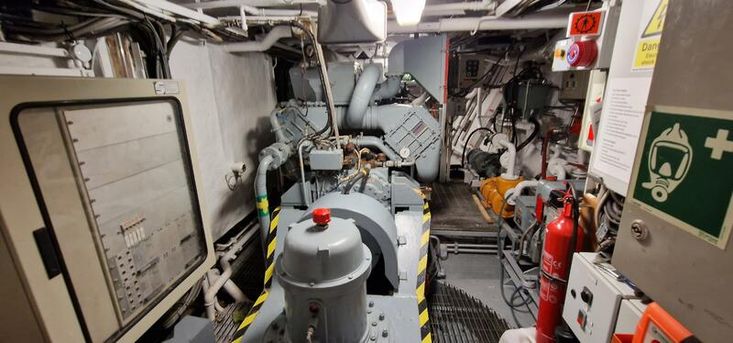

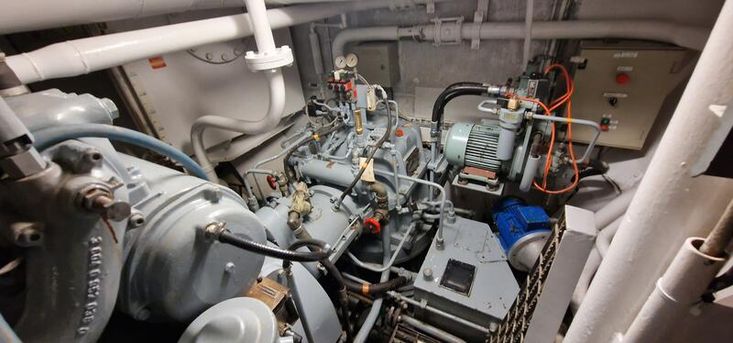

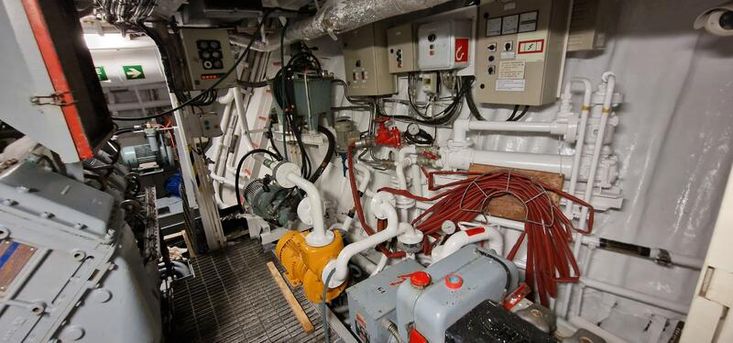

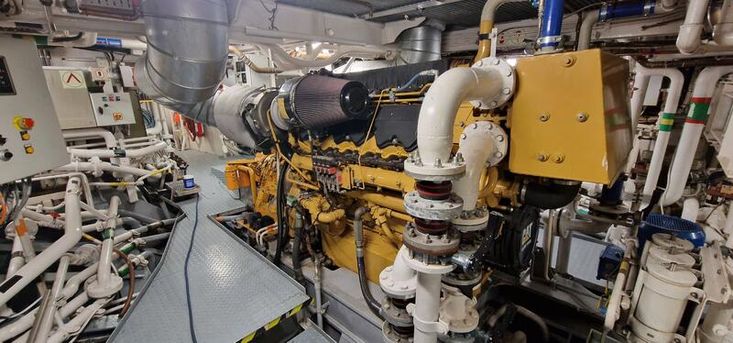

Engine(s)

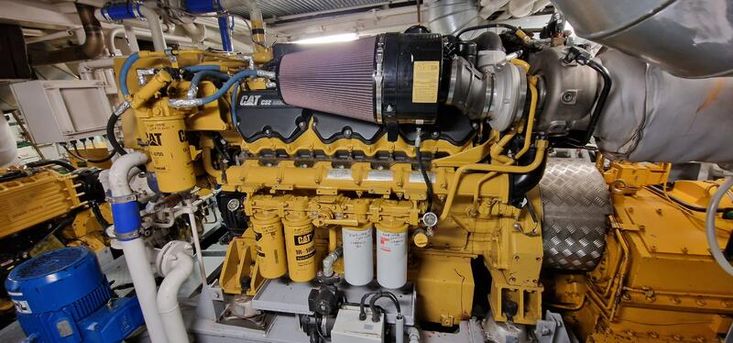

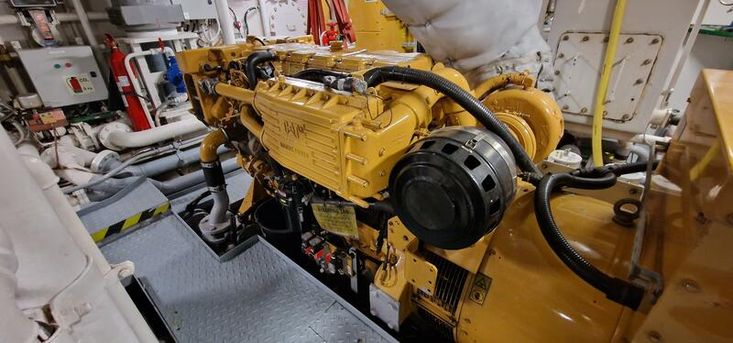

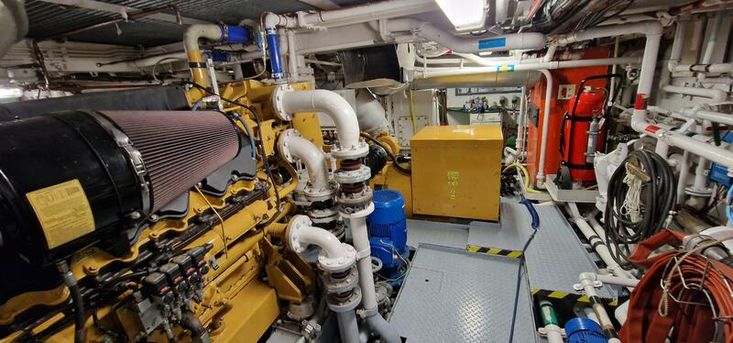

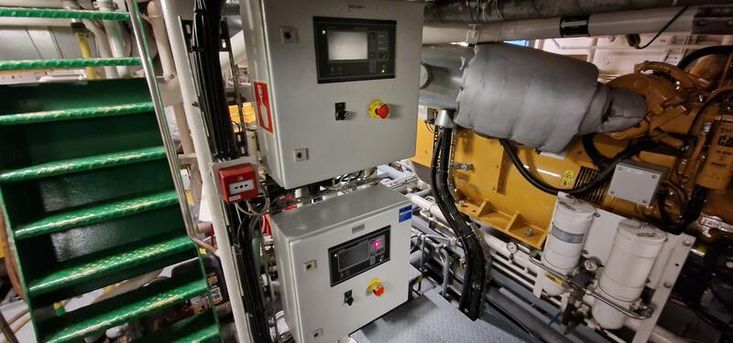

1 x 969 kW Cat C-32 Main generators:

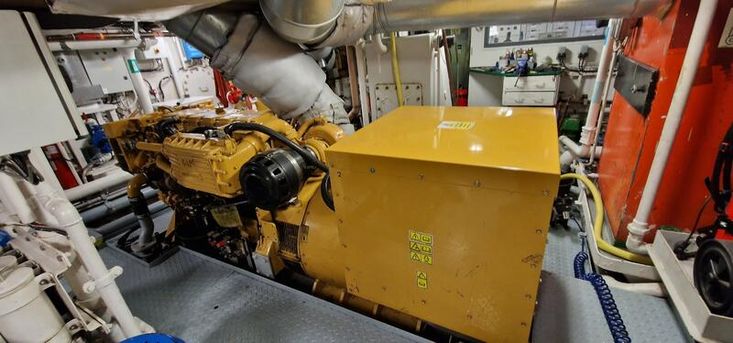

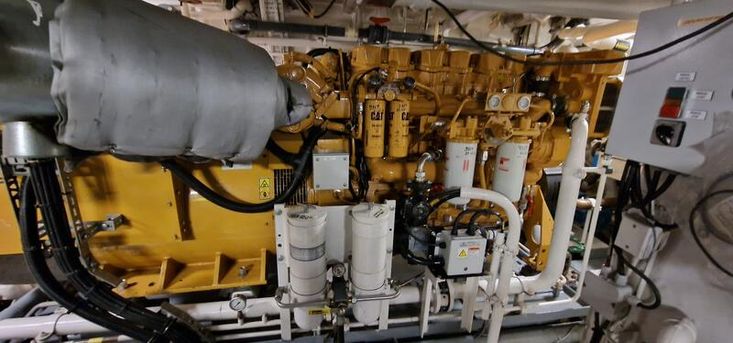

2 x 275 kWe Cat C-18
Emergency generator: 1 x 130 kWe Cat C-4.4

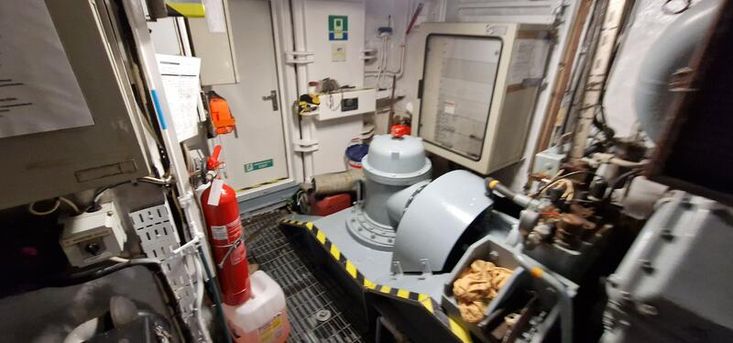

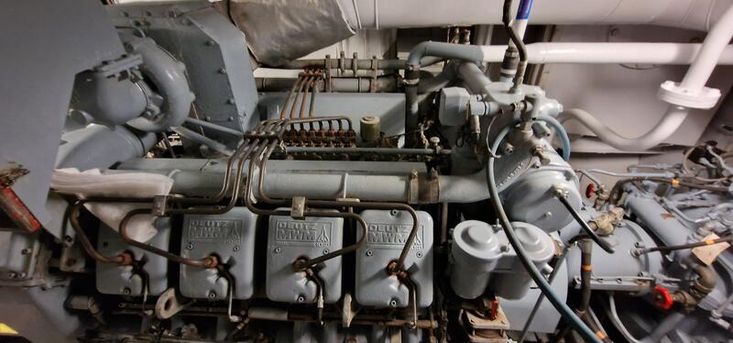

Truster engine: Deutz MWM TBD 620-V8 Bow water jet: 400 kW, 360° revolving Bow thruster: 500 kW with grillage protection
Stern thruster: 500 kW with grillage protection
Propeller: CPP with flap rudder
2015 CAT built 2015 1850 HP reduced to 999 HP No engineer

1 x Pitch propeller with propeller Nozzle 1 x Schottel water jets with 360 degrees turning 400 kw 1 x Brunvold pitch Bow thruster connected to the MWM /Deutz Water jet engine 1 x Brunvold pitch Stern Thruster electrical

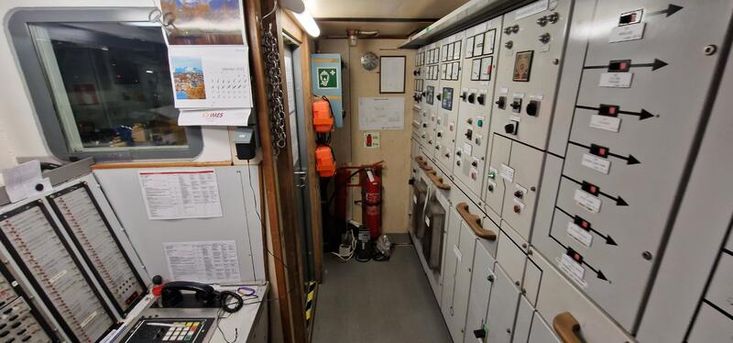

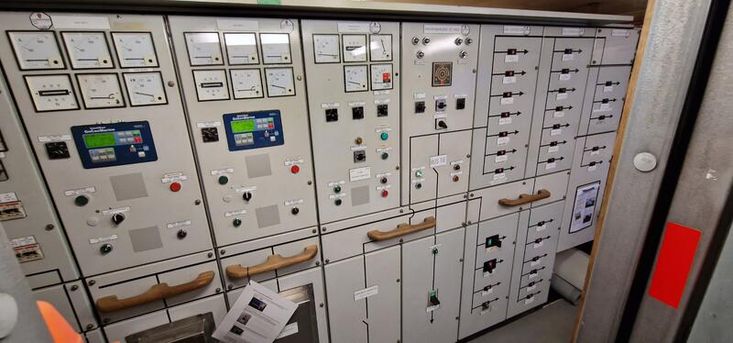

Electrics

Service speed 10 knots. Max 12 knots Service speed 90% load + 1 generator (speed 10 Knots) approx: 2,2 m3/day

Survey Speed + 1 generator running (speed 8,5 knots) approx: 1,6 m3/day DP Mode (main engine + forward Schottel + 2 generators) approx: 1-6 m3/day

Electronics

Recreation Facilities (Toys)

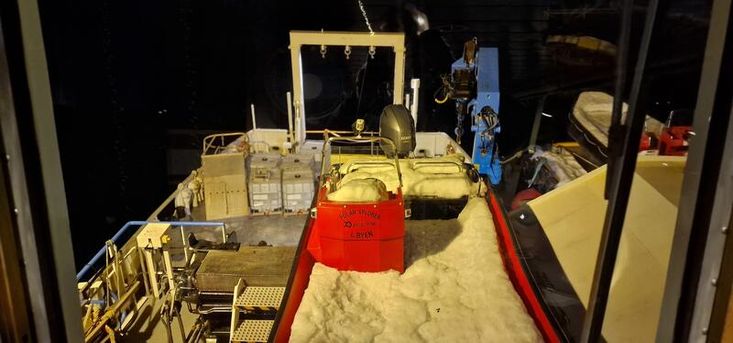

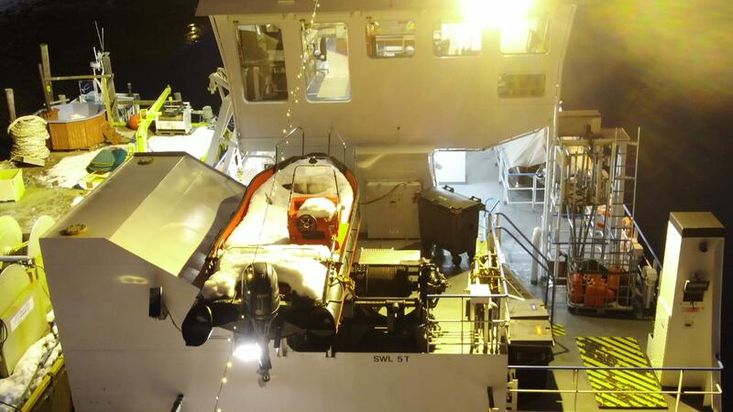

MOB Boat
Working boat: Helgeland Plast with 150 hp engine

Safety Equipment

STANDARD SURVEY EQUIPMENT
MV Inertial MRU/Gyro/GNSS receiver
Trimble SPS-855 GNSS receiver
(using 06-GPS or Marinestar connections)
Online Qinsy PC
MISCELLANEOUS

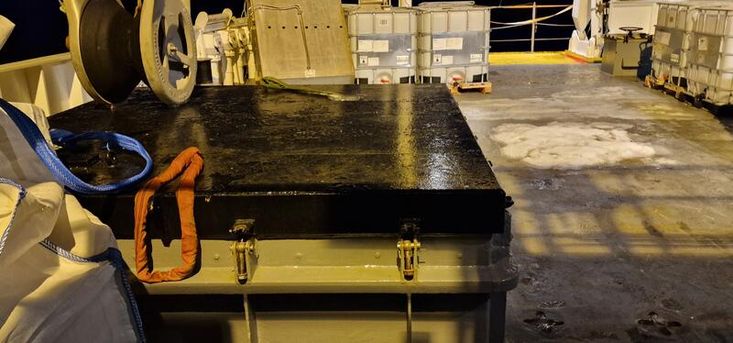

Deck load 2,5t / m²
Deck space 50m² approx.
Electrical deck connections 2x 16Amp
2x 32Amp
2x 64Amp
2x 220V

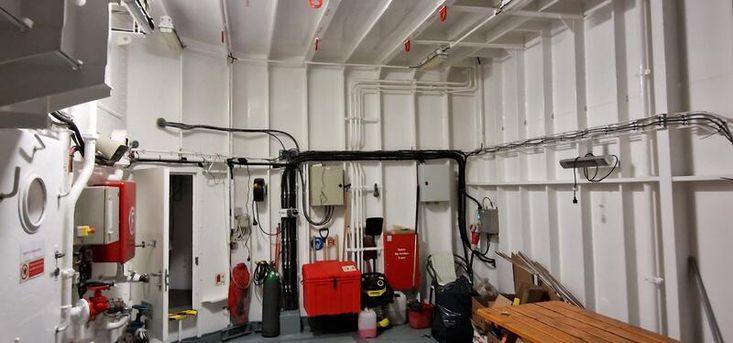

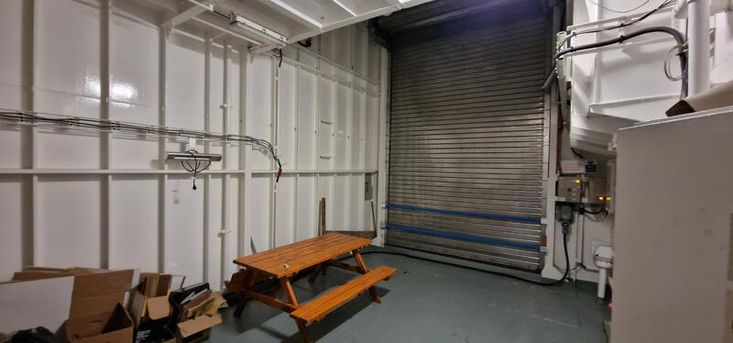

Hangar equipped to
hoist any
type of WROV
Moonpool integrated
cradle and
system wiring
Life Rafts SOLAS approved 4x 25pax

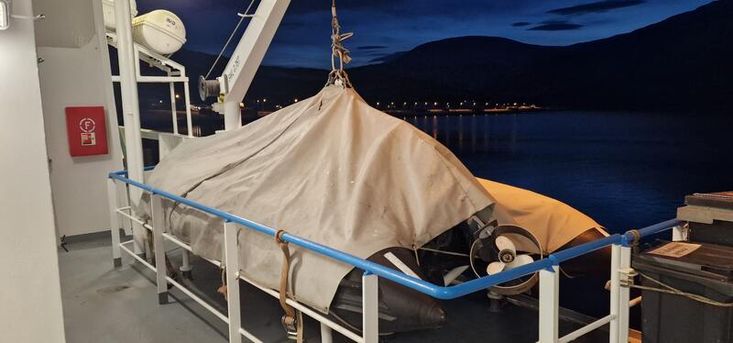

MOB boat 1x 6pax
semi-rigid
inflatable
c/w outboard motor

Certification

Built with DNV Ice class C

Charter Information

Disclaimer

Owner considering sale. All details is given in good manner, but can not be guaranteed.
