Description

Flag / Port of Registry: United Arab Emirates / Abu Dhabi. Hull Material: Fibreglass. Last Hull inspection: July 2023 (out of water). Certificate of Compliance to Trade as a Commercial Yacht. Certificate of Registry Issued: 25 December 2016. Starboard main engine Make: CAT 3208 Run Hrs: Not known. Port main engine Make: CAT 3208.
Date Launched: 2023 Length: 18.45m (60ft 6.3in) Beam: 5.46m (17ft 10.9in) Draft: 2.0m (6ft 6.7in) Note: Engine: 2 x propellers Location: United Arab Emirates

Specifications

Accommodation

Guest cabins consist of the single Master ensuite located on the lower deck aft. There is a crew cabin located forward of
the bar area on the lower deck which is not in use. A further crew cabin is located aft of the bar area.

Bed Double: size bed, mattress in acceptable condition. A fixed
Drawer: nighstand located either side of the bed.
Wardrobes: 1 x fitted wardrobe.
Dressing tables: 1 located by the port side window with no chair. 2 x 3 pinpower sockets provided. 2 x dressing table
drawers.
Flooring: Wooden tiled laminate (Varnished).
Bulkheads: Wooden laminate.
Ceiling: Wood panels and laminate edging.
Seating: 1 x fixed bench deat on the starboard bulkhead.
Wall decoration: A laminate shape above the bed.
Windows: Windows on the port, starboard and aft sides, not fitted with any blinds or curtains.
Lighting: LED downlighters and additional recessed rope lights.
Power sockets: 4 x UK sockets and 2 x USA socket.
Telephones Nil.
TV Decoder and card Nil.
TV Nil.
AC system: Split unit found to be operating to specifications.

Bath / Shower Single shower.
Toilet 1 white porcelain.
Wash basins 1 white porcelain.
Water clarity Good and clear.
Extractor Natral vent fitted in the shower cubicle.
Bulkheads / walls Laminate throughout.
Ceiling Laminate.
Water Hose One fitted
Drainage Good – in shower area only.
Additional fittings Nil.

Location Lower deck midships.
Bed :2 x single beds, bunk bed style.
Wardrobes: Single wardrobe.
Flooring: Wooden laminated tiles (Varnished).
Bulkheads:Wooden laminate.
Ceiling: Wooden laminate.Seating Nil
Lighting: 2 in number, all working.
Power sockets: 2 x 3 pin sockets.
AC system: Split unit found to be operating to specifications.

Bath / Shower: Nil.
Toilet: One of white porcelain.
Wash basins One of white porcelain.
Water clarity Good and clear.
Extractor Natural vent.
Bulkheads / walls Laminated Panelling.
Ceiling Laminated Panelling.
Water Hose One fitted
Drainage Good.
Additional fittings Chrome fittings.

CREW CABIN - 2
Location: Lower deck forward.
Bed: 2 single beds, bunk bed style. Mattress missing on the lower bunk.
Wardrobes: Single wardrobe.
Flooring: Wooden laminated tiles (Varnished).
Bulkheads: Wooden laminate.
Ceiling: Wooden laminate.
Seating: No seating due to available space.
Lighting: 2 in number all working
Power sockets: 1 x 2 pin socket.
AC system: Satisfactory.

Construction

Flag / Port of Registry: United Arab Emirates / Abu Dhabi
Date of build: 2016
Hull Material: Fibreglass
Loa: 18.45m
Beam: 5.46m
Summer Draft: 2.0m midships
GRT: 56

The bridge is fitted with engine alarms.
The fabric and lockers are well worn, but forund to be in a clean condition.
The wheelhouse windows are not fitted with wipers.

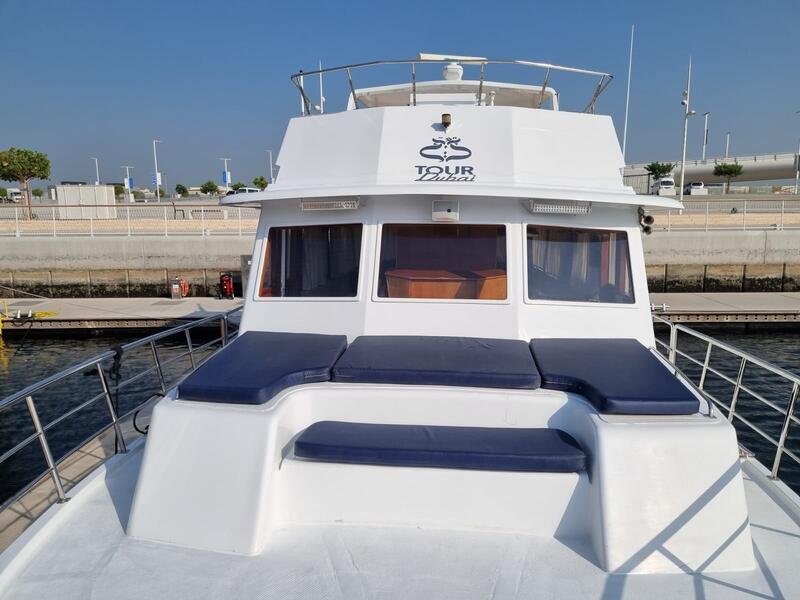

The flying bridge manoeuvring stations was found to be operational.

Bilges were acceptable and dry with no oil sighted and alarms sighted on the bridge console.
The engine room is fitted with a fixed CO2 system for fire fighting purposes and a single
independent automatic drypowder fixed extinguisher located above each main engine.
The engine room has been fitted with sound deadening bulkhead and deckhead coverings.
General engine room condition was acceptable.

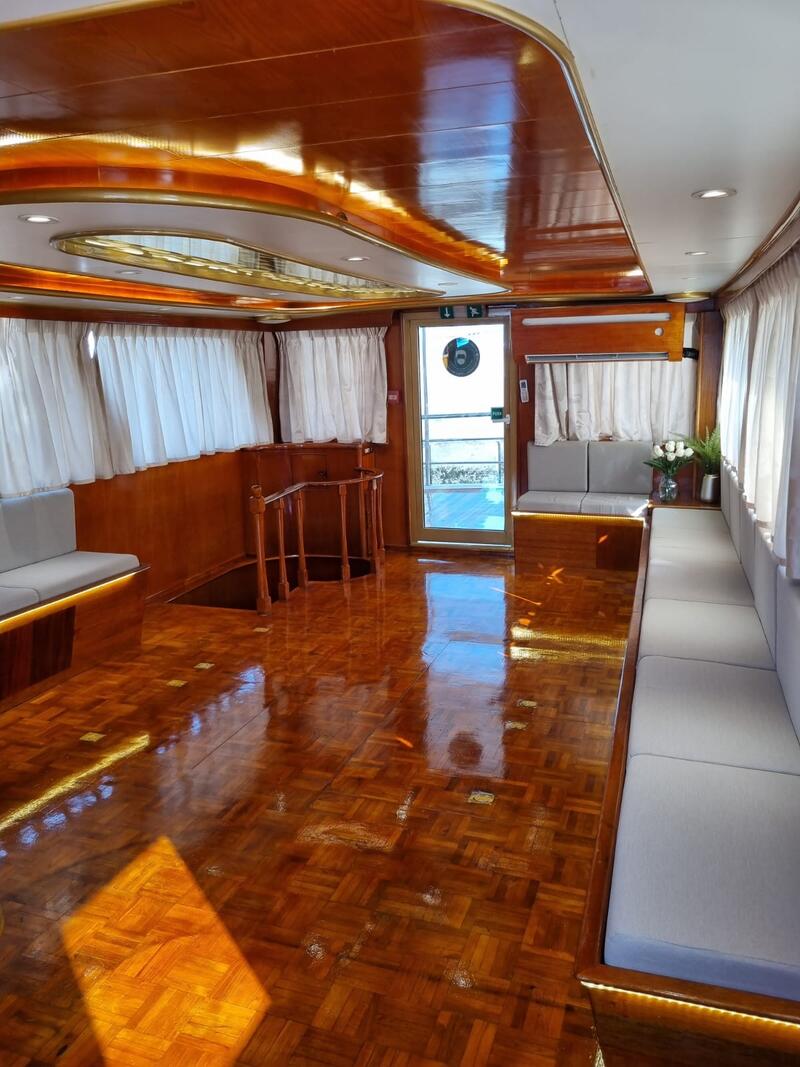

Seating: 1 x “L” shape fixed bench type sofa, 1 x straight bench type sofa.
Flooring: Wodden laminated tiled flooring throughout internally (varnished) as well as in the rear open deck area.
Walls / Bulkheads: Wood and laminate panelling.
Ceiling / deckhead: Wood and laminate panelling.
Power sockets Nil.
Air Conditioning Split unit. Found to be operational.
TV System: Fixede 50” TV.

A single door aft leads to the open deck area.
The wheel houseis located at the forward end of the lounge and is separated by a partition.

Seating :Fixed bench seats at port aft and starboard aft areas.
Flooring: Non slip.
Walls / Bulkheads :Chrome safety handrails fitted throughout.
Ceiling / deckhead :Fixed canopy fitted at the forward end.
The Vessel is not furnished with a galley of any sort. All and any food requiremnts (including for
crew) must be brought in by caterers.

The Vessel has been furnished with a bar area that is located on the Lower Deck between the 2
crew cabins. It has a conventional bar top with sink and small lockers. It is accessed via a
staircase leading from the upper deck saloon and has a slanted port located on the port and starboard bulkheads. It has
been fitted with wooden laminate flooring and wood panelling in way of the bulkheads and deckheads.

Material All fibreglass.
Coating Gelcoat.
Capstans Single manual combination capstan/windlass forward.
Anchor windlass Single manual combination capstan/windlass forward.
Tender: Tender located at the aft end of the sun deck and is davit launched. Tender is a rigid type with an outboard
engine.
Sailing Yacht No sail fitted. The vessel is a motor yacht.
Flying bridge control console: Noted to be operational. The console monitors were observed to be operational and in
generally good condition.
Additional Comments:
We understand that the Vessel tender is also used as a life / safety boat.

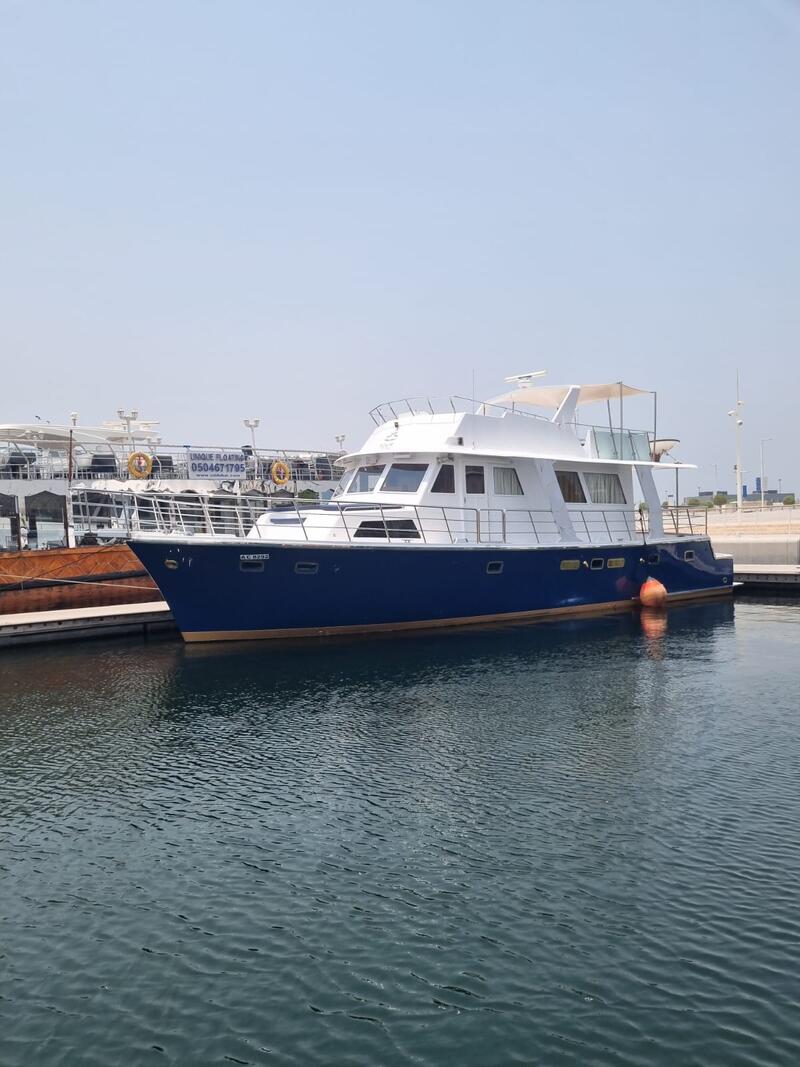

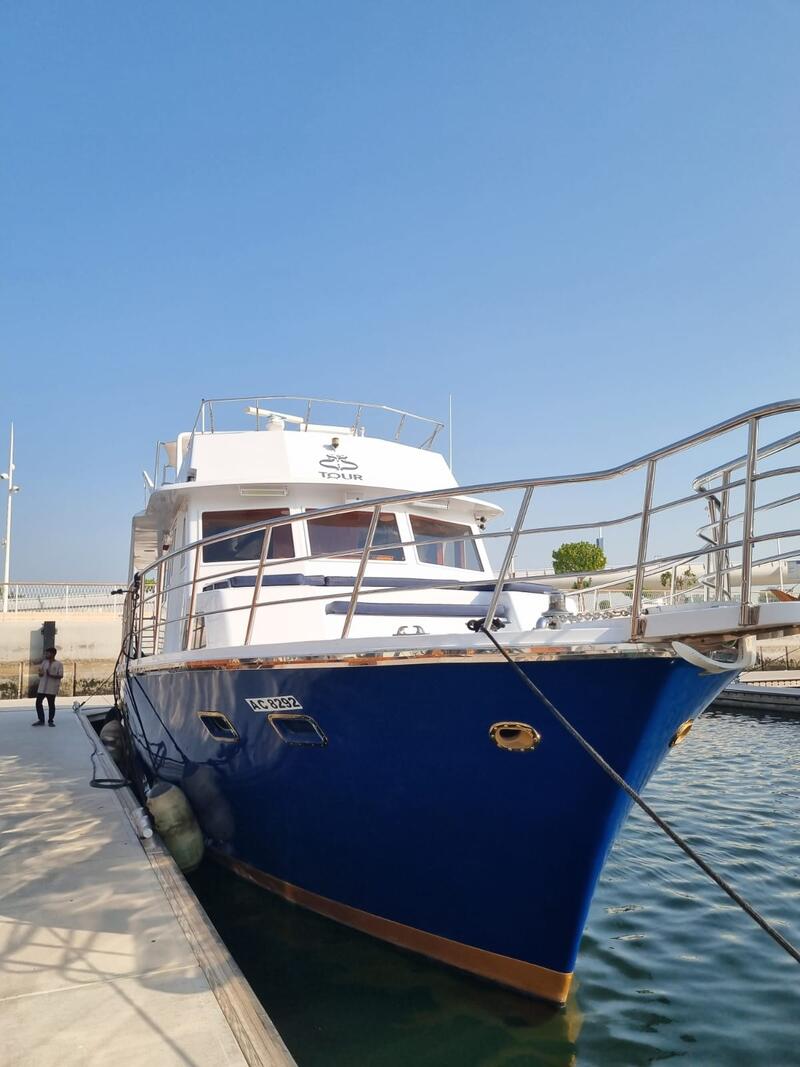

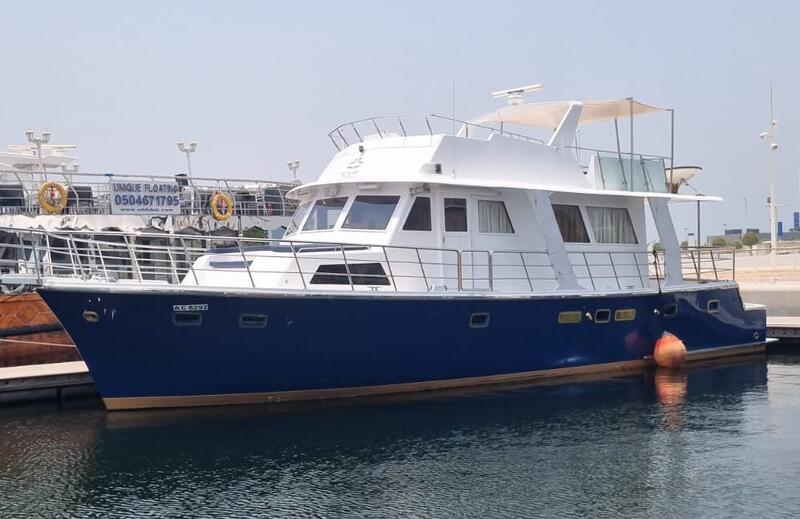

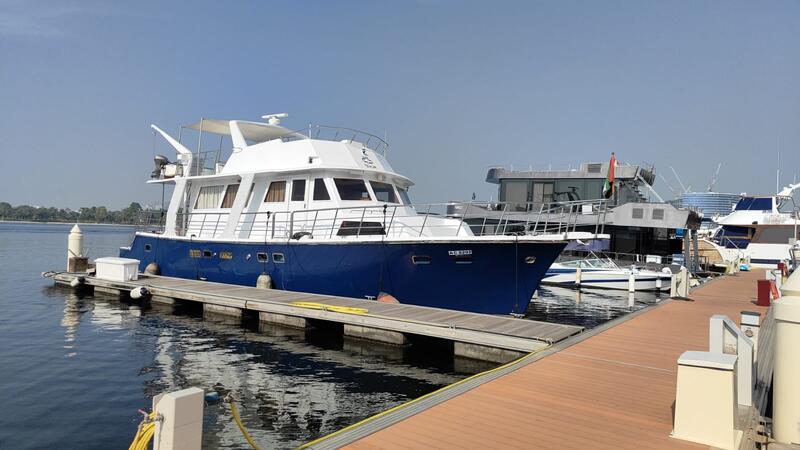

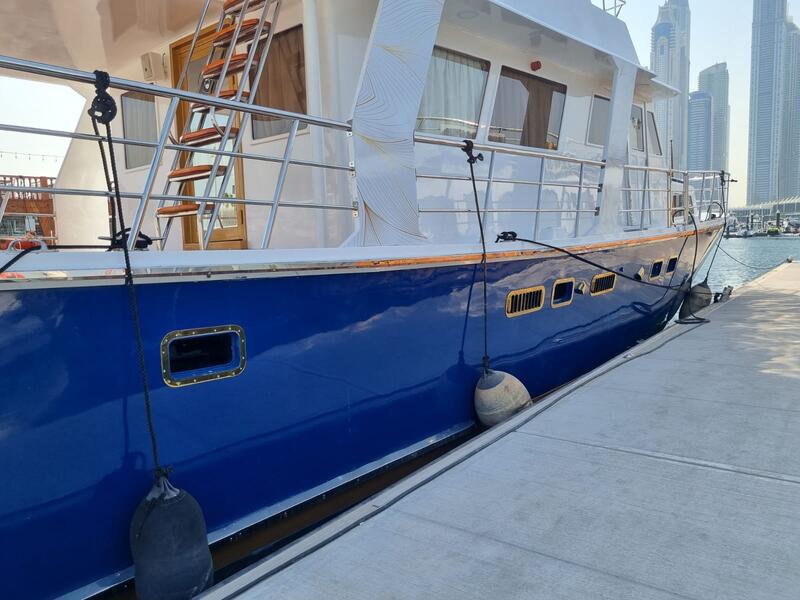

The vessel external hull was seen in good condition. Hull coatings were in good condition, however, there are areas of coating failure on the starboard side consistent with small contact.The hull marks were legible. There was no apparent damage to hull or superstructure above the water line. Minimal marine growth below the water line was noted. Internally superstructure and all coatings were in an acceptable condition with showing signs of normal wear and tear.

Navigation Equipment

Equipment Model
Radar 1 Nil. An old radar scanner remains on board.
VHF radio: ICOM ICM 330
Gyro Compass: VDO
Publications: Nil.
Pyrotechnics: 0 x parachute rockets, 8 x handheld flares and 2 smoke signals Expiry May 2025.

Engine(s)

Max free running speed: 10 knots
Propellers: 2 x propellers
Thrusters: 1 x Bow
FO Capacity: 6.531 m³
FW Capacity: 2.004 m³

Equipment Model
Starboard main engine Make: CAT 3208 Run Hrs: Not known
Port main engine Make: CAT 3208
Generators Make: 1 x Orion 20.0 plus 1 x Orion 10.0
Steering gear Dewaal, electro-hydraulic, 2 x spade rudders

Both main engines and both auxiliary engines were run in our presence. It was reported by the Owners representative that maintenance of the engines had recently been carried out during the drydocking period in July 2023 – we have requested documentation of the same. Running hour records were not made available to us during the time of our attendance, we have also requested the same.

Recreation Facilities (Toys)

TV System No System – Single TV located in main deck saloon.
Sound system A single amplifier linked to speakers in the saloon and on the flying bridge.

Safety Equipment

Life jackets: 35 x Conventional life jacketsPyrotechnics: 8 x Handheld flares May 2025 2 x Smoke floats May 2025
Line Thrower Nil

All Fire Fighting Appliances were found to be well maintained and certified. A random selection of equipment was inspected and found to be satisfactory. All relevant certification was sighted at the time of the survey.
All Life Saving Appliances were found to be well maintained.

Certification

Last Hull inspection: July 2023 (out of water)

Certificate of Compliance to Trade as a Commercial Yacht
Certificate of Registry Issued: 25 December 2016

CONDITION SURVEY
Magnetic Compass:Yes.
Fog Horn: Tested and operational.
Engine indicators: VDO Gauges.
Bridge Sun Blinds / Tinting Nil.

Curtains / Blinds Hand drawn conventional curtains.
Telephone system None fitted.
Lighting Rope lights in the recesses and LED spots throughout.
HVAC system Dometic Condaria PCWM 27003m - 108 Btu/hr
Sanitation system Conventional, Black and grey water storage tanks.
Sea Valves: 2 x Manual Valve
Bridge Chairs Single padded bench seat.
Bridge Console
Found to be in acceptable condition. All displays are conventional gauges.
Console gauges The gauges found to be operational.
Navigation equipment and repeaters All operational.
Chair condition Good

Fire Detection System (all 54 cabins and accommodation areas)RAVEL RE 102 system. 4 smoke detectors plus 1 heat
detector in the accommodation, and 1 heat detector in the engine room. The fire plan only shows the engine room as
being monitored.
Portable Extinguishers 4 x Dry Powder plus 1 x CO2 – Next inspection 1 August 2024

Structural Good condition with no apparent signs of indentation.
Coating Intact and in good condition.
Inlets Not known.
Thrusters Bow thruster only -0 reported as operational.
Propellers Not inspected.
Rudders Not inspected.
Anodes Not inspected.
Fouling Not inspected.

Throughout the Vessel’s Deck Machinery, the house keeping was of an acceptable standard. All machinery was clean, well maintained and greased with no signs of hazards to personnel.

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
