All Barges Commercial Vessels for sale in the UAE
20.74m inc bow(18.29m) x 12.19 x 1.83m depth
Please contact us for a full package of information...
read more
Year: | 2019 |
Length: |
20.74m |
Location: |
UAE |
Price: | €900,000 |
View Details |
12 x 9 x 2m depth
Please contact us for a full package of information....
read more
Year: | 2018 |
Length: |
12m |
Location: |
UAE |
Price: | €550,000 |
View Details |
Jackup barge for charter middle east.
51 + 15m Leg length
1100 T Payload
Crane
PC 250 HD, twin hooks
250 tons at 20.0 m radius (on 2 hooks)
49 m / 61 m / 73 m
Other jackups also available to include combifloat modular jackup barges...
read more
Self-Elevating Platform
Built By: Norfolk Shipbuilding and DD Co.
Length Overall: 48.77 m
Breadth: 25.60 m
Depth: 4.28 m
Draft: 2.59 m
GRT / NRT: 1417.00 / 425.00 t
Deck Strength: 3.17 t/m2 (specific areas up to 40 t/m2 as indicated in deck plan)
Lightship: 2,230.64 t
Deadweight: 903.61 t
Displacement: 3,134.25 t
Caisson: Make / Nos.: De Long D69Ah6 / 6
Diameter / Length: Outer Ø1.80 m / 51.83 m
Lifting / Holding Capacity: 454.00 / 907.00 t per Caisson
Lifting Speed / Gripper Air Pressure: 15.24 m/hr / 350 psi
Crane (Crawler): Make / Model: Manitowoc / 4600 Series 4
Capa...
read more
Non-Propelled, Deck Barge
Built By : PT ASL Shipyard, Batam,
Place Built : Indonesia
Year Built : 2006
Flag Authority : St. Vincent and the Grenadines
Port of Registry : Kingstown
Classification : DNV No, G107035
Class Notation : ? 100 A5 Barge
GRT : 3539
NRT : 1061
Deck Loading Capacity : 10 Tons/m2
Length : 91.44 M
Breadth : 25.00 M
Depth : 6.10 M
Summer Draught : 4.868 M
Light Ship Draught : 1.155 M
Light Ship Weight : 2,065.31 Tons
Deadweight : 8,001.44 Tons
Displacement : 10,066.75 Tons
Technical Data:
Longitudinal Bulkheads / Reinforcement:
Nos x Thickness : 2 x 8 mm...
read more
Built By : Nanjing Yonghua Shipbuilding Co. Ltd.
Place Built : China
Year Built : 2005
Flag Authority : St. Vincent and the Grenadines
Port of Registry : Kingstown
Classification : DNV No, G112247
Class Notation : ? 100 A5 Pontoon
GRT : 3545
NRT : 1064
Deck Loading Capacity : 10 Tons/m2
Length : 91.44 M
Breadth : 24.99 M
Depth : 6.10 M
Summer Draught : 4.857 M
Light Ship Draught : 1.26 M
Light Ship Weight : 2,267.92 Tons
Deadweight : 7,773.54 Tons
Displacement : 10,041.46 Tons
Technical Data:
Longitudinal Bulkheads / Reinforcement:
Nos x Thickness : 2 x 8 mm
Stiffener Size...
read more

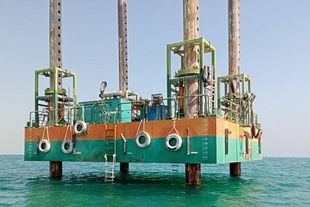

Modular Jackup Barge - for Geotechnical Work
Built: 2018
Class: n/a (Local Small Vessel Reg.)
Dimensions:12m x 9m, legs 29m
Tonnage:30 T Deck Loading Capacity
Sections: 3
Location: Middle East...
read more
Modular Jackup Barge for Sale
Built:2019 (Baars, Netherlands)
Class: RINA 5NM Coastal Area (Sept. 24)
Dimensions:18.29 (ex. bow) x 12.19m, 30m Legs
Tonnage:40 T lifting capacity (deck 6t/m2)
Location: Middle East...
read more
